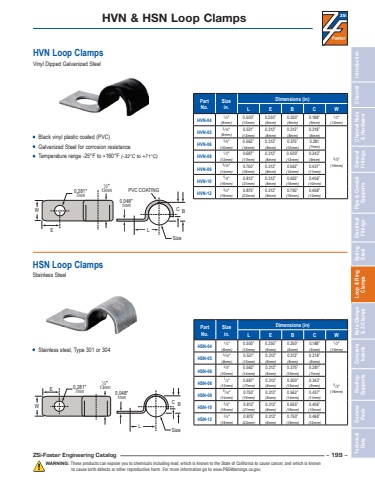

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 199 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.HVN Loop ClampsVinyl Dipped Galvanized Steel• Black vinyl plastic coated (PVC)• Galvanized Steel for corrosion resistance• Temperature range -25°F to +160°F (-32°C to +71°C)HSN Loop ClampsStainless Steel• Stainless steel, Type 301 or 304Part No.Size in.Dimensions (in)L E B C WHVN-04 1 ⁄4\(6mm)0.500\(13mm)0.250\(6mm)0.250\(6mm)0.188\(5mm)1 ⁄2\ (13mm)HVN-05 5 ⁄16\(8mm)0.531\(13mm)0.312\(8mm)0.312\(8mm)0.218\(6mm)5 ⁄8\ (16mm)HVN-06 3 ⁄8\(10mm)0.562\(14mm)0.312\(8mm)0.375\(10mm)0.281(7mm)HVN-08 1 ⁄2\(13mm)0.687\(17mm)0.312\(8mm)0.500\(13mm)0.343\(9mm)HVN-09 9 ⁄16\(14mm)0.750\(19mm)0.312\(8mm)0.562\(14mm)0.437\(11mm)HVN-10 5 ⁄8\(16mm)0.812\(21mm)0.312\(8mm)0.625\(16mm)0.406\(10mm)HVN-12 3 ⁄4\(19mm)0.875\(22mm)0.312\(8mm)0.750\(19mm)0.468\(12mm)Part No.Size in.Dimensions (in)L E B C WHSN-04 1 ⁄4\(6mm)0.500\(13mm)0.250\(6mm)0.250\(6mm)0.188\(5mm)1 ⁄2\(13mm)HSN-05 5 ⁄16\(8mm)0.531\(13mm)0.312\(8mm)0.312\(8mm)0.218\(6mm)5 ⁄8\(16mm)HSN-06 3 ⁄8\(10mm)0.562\(14mm)0.312\(8mm)0.375\(10mm)0.281\(7mm)HSN-08 1 ⁄2\(13mm)0.687\(17mm)0.312\(8mm)0.500\(13mm)0.343\(9mm)HSN-09 9 ⁄16\(14mm)0.750\(19mm)0.312\(8mm)0.562\(14mm)0.437\(11mm)HSN-10 5 ⁄8\(16mm)0.812\(21mm)0.312\(8mm)0.625\(16mm)0.406\(10mm)HSN-12 3 ⁄4\(19mm)0.875\(22mm)0.312\(8mm)0.750\(19mm)0.468\(12mm)HVN & HSN Loop Clamps1⁄2\13mmE0.281\7mmLSizeC0.048\1mmBPVC COATINGWEL SizeC B W1⁄2\0.281\13mm7mm 0.048\1mm
