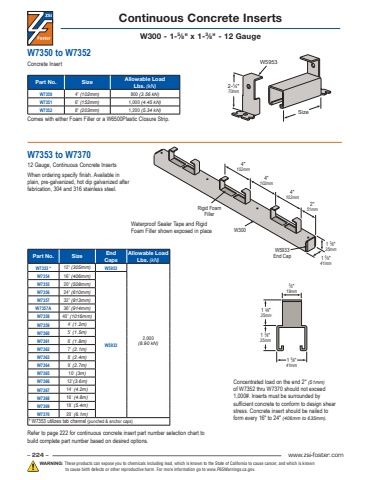

– 224 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Waterproof Sealer Tape and Rigid Foam Filler shown exposed in placeW7350 to W7352Concrete InsertPart No. Size Allowable Load Lbs. (kN)W7350 4\800 (3.56 kN)W7351 6\1,000 (4.45 kN)W7352 8\1,200 (5.34 kN)Continuous Concrete Inserts W300 - 1-5⁄8\⁄8\W7353 to W737012 Gauge, Continuous Concrete InsertsWhen ordering specify finish. Available in plain, pre-galvanized, hot dip galvanized after fabrication, 304 and 316 stainless steel.Concentrated load on the end 2\of W7352 thru W7370 should not exceed 1,000#. Inserts must be surrounded by sufficient concrete to conform to design shear stress. Concrete insert should be nailed to form every 16\Part No. Size End CapsAllowable Load Lbs. (kN)W7353 * 12\W59532,000 (8.90 kN)W7354 16\W5933W7355 20\W7356 24\W7357 32\W7357A 36\W7358 40\W7359 4' (1.2m)W7360 5' (1.5m)W7361 6' (1.8m)W7362 7' (2.1m)W7363 8' (2.4m)W7364 9' (2.7m)W7365 10' (3m)W7366 12'(3.6m)W7367 14' (4.2m)W7368 16' (4.8m)W7369 18' (5.4m)W7370 20' (6.1m)* W7353 utilizes tab channel (punched & anchor caps)2-3⁄4\70mmSizeW59531 5⁄8\41mm1 3⁄8\35mm1 3⁄8\35mm3⁄4\19mm1 3⁄8\35mm2\51mm4\102mmRigid FoamFiller4\102mm4\102mm1 5⁄8\41mmW5933End CapW300Refer to page 222 for continuous concrete insert part number selection chart to build complete part number based on desired options.Comes with either Foam Filler or a W6500Plastic Closure Strip.
