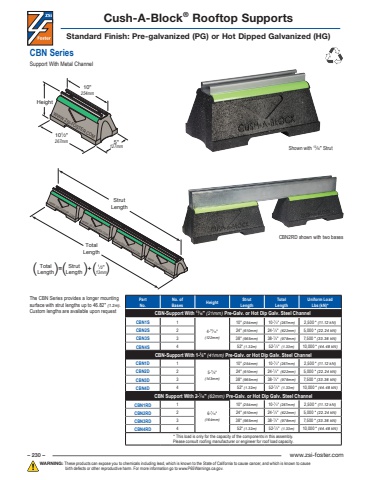

– 230 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Cush-A-Block® Rooftop SupportsStandard Finish: Pre-galvanized (PG) or Hot Dipped Galvanized (HG)CBN SeriesSupport With Metal ChannelCBN2RD shown with two basesShown with 13⁄16\The CBN Series provides a longer mounting surface with strut lengths up to 46.82\Custom lengths are available upon requestStrutLengthTotalLengthTotalLengthStrutLength = + 1⁄2\( ) ( ) ( ) 13mmWWW.ZSI-FOSTER.COMWWW.ZSI-FOSTER.COMWWW.ZSI-FOSTER.COMWWW.ZSI-FOSTER.COM101⁄2\267mm10\254mmHeight5\127mmWWW.ZSI-FOSTER.COMPartNo.No. of Bases Height StrutLengthTotalLengthUniform Load Lbs (kN)*CBN-Support With 13⁄16\CBN1S 14-13⁄16\(122mm)10\10-1⁄ 2\2,500 * (11.12 kN)CBN2S 2 24\24-1⁄ 2\5,000 * (22.24 kN)CBN3S 3 38\38-1⁄ 2\7,500 * (33.36 kN)CBN4S 4 52\52-1⁄ 2\10,000 * (44.48 kN)CBN-Support With 1-5⁄8\CBN1D 15-5⁄ 8\(143mm)10\10-1⁄ 2\2,500 * (11.12 kN)CBN2D 2 24\24-1⁄ 2\5,000 * (22.24 kN)CBN3D 3 38\38-1⁄ 2\7,500 * (33.36 kN)CBN4D 4 52\52-1⁄ 2\10,000 * (44.48 kN)CBN Support With 2-7⁄16\CBN1RD 16-7⁄16\(164mm)10\10-1⁄ 2\2,500 * (11.12 kN)CBN2RD 2 24\24-1⁄ 2\5,000 * (22.24 kN)CBN3RD 3 38\38-1⁄ 2\7,500 * (33.36 kN)CBN4RD 4 52\52-1⁄ 2\10,000 * (44.48 kN)* This load is only for the capacity of the components in this assembly. Please consult roofing manufacturer or engineer for roof load capacity.
