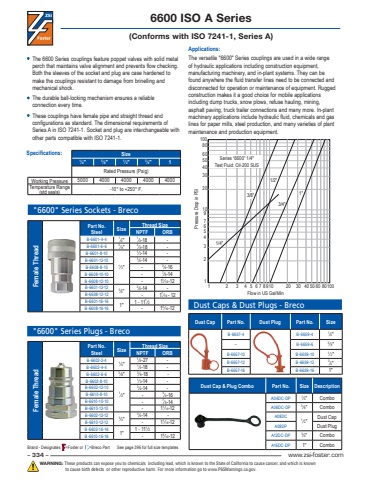

Page 334 - Demo

Brand - Designates =Foster or =Breco Part– 334 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Dust Caps & Dust Plugs - BrecoDust Cap Part No. Dust Plug Part No. Size B-6657-4 B-6659-4 1⁄4\– B-6659-6 3⁄ 8\B-6657-10 B-6659-10 1⁄ 2\B-6657-12 B-6659-12 3⁄4\B-6657-16 B-6659-16 1\Dust Cap & Plug Combo Part No. Size DescriptionA04DC-DP 1⁄4\ComboA06DC-DP 3⁄ 8\ComboA08DC 1⁄ 2\Dust CapA08DP Dust PlugA12DC-DP 3⁄4\ComboA16DC-DP 1\Combo6600 ISO A Series(Conforms with ISO 7241-1, Series A)Applications:The versatile \of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment. Rugged construction makes it a good choice for mobile applications including dump trucks, snow plows, refuse hauling, mining, asphalt paving, truck trailer connections and many more. In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment. • The 6600 Series couplings feature poppet valves with solid metal perch that maintains valve alignment and prevents flow checking. Both the sleeves of the socket and plug are case hardened to make the couplings resistant to damage from brinelling and mechanical shock.• The durable ball-locking mechanism ensures a reliable connection every time.• These couplings have female pipe and straight thread end configurations as standard. The dimensional requirements of Series A in ISO 7241-1. Socket and plug are interchangeable with other parts compatible with ISO 7241-1.Size1⁄4\3⁄8\1⁄2\3⁄4\1 Rated Pressure (Psig) Working Pressure 5000 4000 4000 4000 4000 Temperature Range (std seals) -10° to +250° F. Specifications:121 2 3344556677899101020 20 40 40 30 30 60 60 50 50 80 100 80 100 3/8\1/4\3/4\1/2\1\Series “6600” 1/4\Test Fluid: Oil-200 SUSPressure Drop in PSIFlow in US Gal/Min\ Series Sockets - Breco Female ThreadPart No. Steel Size Thread Size NPTF ORBB-6601-4-4 1⁄4\1⁄4-18 -B-6601-6-6 3⁄ 8\3⁄ 8-18 -B-6601-8-10 1⁄ 2\1⁄ 2-14 -B-6601-12-10 3⁄4-14 -B-6608-8-10 - 3⁄4-16 B-6608-10-10 - 7⁄ 8-14 B-6608-12-10 - 11⁄16-12 B-6601-12-12 3⁄4\3⁄4-14 -B-6608-12-12 - 11⁄16 - 12B-6601-16-16 1\ 1 - 111⁄ 2B-6608-16-16 - 15⁄16-12 Female ThreadPart No. Steel Size Thread Size NPTF ORBB-6602-2-4 1⁄4\1⁄ 8-27 -B-6602-4-4 1⁄4-18 -B-6602-6-6 3⁄ 8\3⁄ 8-18 -B-6602-8-101⁄ 2\1⁄ 2-14 -B-6602-12-10 3⁄4-14 -B-6610-8-10 - 3⁄4-16 B-6610-10-10 - 7⁄ 8-14 B-6610-12-10 - 11⁄16-12 B-6602-12-12 3⁄4\3⁄4-14 -B-6610-12-12 - 11⁄16-12B-6602-16-16 1\ 1 - 111⁄ 2B-6610-16-16 - 15⁄16-12\ Series Plugs - BrecoSee page 396 for full size templates
