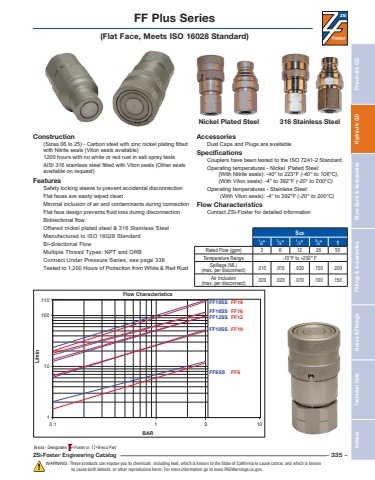

Indexes Technical Data Hoses & Fittings Fittings & Accessories Blow Guns & Accessories Hydraulic QD Pneumatic QDBrand - Designates =Foster or =Breco PartZSi-Foster Engineering Catalog – 335 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.FF Plus Series(Flat Face, Meets ISO 16028 Standard)1101001100.1 1 10BARFlow CharacteristicsL/min3FF19SS FF19FF16SS FF16FF12SS FF12FF10SS FF10FF6SS FF6Nickel Plated Steel 316 Stainless Steel Size1⁄4\3⁄8\1⁄2\3⁄4\1Rated Flow (gpm) 3 6 12 26 50Temperature Range -10°F to +250° FSpillage (ML) (max. per disconnect) .015 .015 .020 .150 .200Air Inclusion(max. per disconnect) .020 .020 .070 .100 .150Construction (Sizes 06 to 25) - Carbon steel with zinc nickel plating fitted with Nitrile seals (Viton seals available) 1200 hours with no white or red rust in salt spray testsAISI 316 stainless steel fitted with Viton seals (Other seals available on request)Features Safety locking sleeve to prevent accidental disconnection Flat faces are easily wiped clean Minimal inclusion of air and contaminants during connection Flat face design prevents fluid loss during disconnection Bidirectional flow Offered nickel plated steel & 316 Stainless SteelManufactured to ISO 16028 StandardBi-directional FlowMultiple Thread Types: NPT and ORBConnect Under Pressure Series, see page 338Tested to 1,200 Hours of Protection from White & Red RustAccessoriesDust Caps and Plugs are availableSpecificationsCouplers have been tested to the ISO 7241-2 Standard Operating temperatures - Nickel Plated Steel: (With Nitrile seals): -40° to 223°F (-40° to 106°C), (With Viton seals): -4° to 392°F (-20° to 200°C)Operating temperatures - Stainless Steel: (With Viton seals): -4° to 392°F (-20° to 200°C) Flow CharacteristicsContact ZSi-Foster for detailed information
