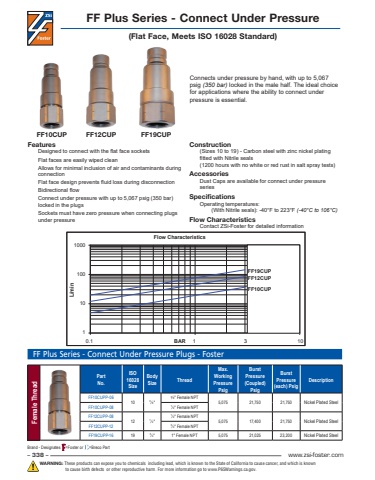

Brand - Designates =Foster or =Breco Part– 338 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.FF Plus Series - Connect Under Pressure(Flat Face, Meets ISO 16028 Standard)FF10CUP FF12CUP FF19CUPFF19CUPFF12CUPFF10CUPBARFlow CharacteristicsL/min0.1 1 3 101101001000Female ThreadPart No.ISO 16028SizeBody Size ThreadMax. WorkingPressurePsigBurstPressure(Coupled) PsigBurstPressure(each) PsigDescriptionFF10CUPP-0610 3⁄ 8\3⁄ 8\5,075 21,750 21,750 Nickel Plated SteelFF10CUPP-08 1⁄ 2\FF12CUPP-0812 1⁄ 2\1⁄ 2\5,075 17,400 21,750 Nickel Plated SteelFF12CUPP-12 3⁄4\FF19CUPP-16 19 3⁄4\1\5,075 21,025 23,200 Nickel Plated SteelFF Plus Series - Connect Under Pressure Plugs - FosterFeatures Designed to connect with the flat face sockets Flat faces are easily wiped clean Allows for minimal inclusion of air and contaminants during connection Flat face design prevents fluid loss during disconnection Bidirectional flow Connect under pressure with up to 5,067 psig (350 bar)locked in the plugs Sockets must have zero pressure when connecting plugs under pressure Construction (Sizes 10 to 19) - Carbon steel with zinc nickel platingfitted with Nitrile seals (1200 hours with no white or red rust in salt spray tests) AccessoriesDust Caps are available for connect under pressure seriesSpecificationsOperating temperatures: (With Nitrile seals): -40°F to 223°F (-40°C to 106°C)Flow CharacteristicsContact ZSi-Foster for detailed informationConnects under pressure by hand, with up to 5,067 psig (350 bar) locked in the male half. The ideal choice for applications where the ability to connect under pressure is essential.
