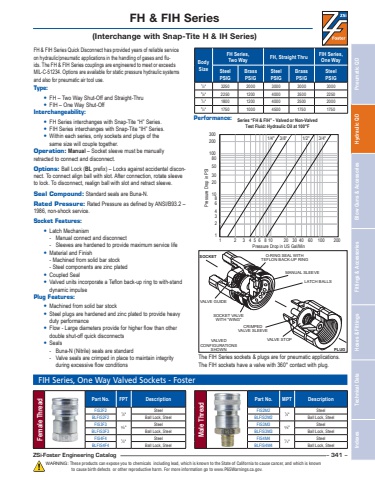

Indexes Technical Data Hoses & Fittings Fittings & Accessories Blow Guns & Accessories Hydraulic QD Pneumatic QDZSi-Foster Engineering Catalog – 341 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.FH & FIH Series Quick Disconnect has provided years of reliable service on hydraulic/pneumatic applications in the handling of gases and fluids. The FH & FIH Series couplings are engineered to meet or exceeds MIL-C-51234. Options are available for static pressure hydraulic systems and also for pneumatic air tool use.Type:• FH – Two Way Shut-Off and Straight-Thru• FIH – One Way Shut-OffInterchangeability:• FH Series interchanges with Snap-Tite “H” Series. • FIH Series interchanges with Snap-Tite “IH” Series. • Within each series, only sockets and plugs of the same size will couple together.Operation: Manual – Socket sleeve must be manuallyretracted to connect and disconnect.Options: Ball Lock (BL prefix) – Locks against accidental disconnect. To connect align ball with slot. After connection, rotate sleeve to lock. To disconnect, realign ball with slot and retract sleeve.Seal Compound: Standard seals are Buna-N.Rated Pressure: Rated Pressure as defined by ANSI/B93.2 – 1986, non-shock service.Socket Features:• Latch Mechanism- Manual connect and disconnect- Sleeves are hardened to provide maximum service life• Material and Finish- Machined from solid bar stock- Steel components are zinc plated• Coupled Seal• Valved units incorporate a Teflon back-up ring to with-stand dynamic impulsePlug Features:• Machined from solid bar stock• Steel plugs are hardened and zinc plated to provide heavy duty performance• Flow - Large diameters provide for higher flow than other double shut-off quick disconnects• Seals- Buna-N (Nitrile) seals are standard- Valve seals are crimped in place to maintain integrity during excessive flow conditionsBody SizeFH Series,Two Way FH, Straight Thru FIH Series,One WaySteelPSIGBrassPSIGSteelPSIGBrassPSIGSteelPSIG1/4\3250 2000 3000 3000 30003/8\2250 1200 4000 3500 22501/2\1800 1200 4000 2500 20003/4\1750 1000 4500 1750 1750The FIH Series sockets & plugs are for pneumatic applications. The FIH sockets have a valve with 360° contact with plug.Performance:LATCH BALLSMANUAL SLEEVEO-RING SEAL WITHTEFLON BACK-UP RINGVALVE GUIDESOCKET VALVEWITH “WING”CRIMPEDVALVE SLEEVEVALVE STOP VALVEDCONFIGURATIONSSHOWNSOCKETPLUG108643211 2 3 4 5 6 8 20 30 40 60 100 20020305080100200300101/4\3/8\1/2\3/4\Pressure Drop in PSIPressure Drop in US Gal/MinSeries “FH & FIH” - Valved or Non-ValvedTest Fluid: Hydraulic Oil at 100°FFH & FIH Series(Interchange with Snap-Tite H & IH Series)FIH Series, One Way Valved Sockets - Foster Female ThreadPart No. FPT DescriptionFIS2F2 1⁄4\SteelBLFIS2F2 Ball Lock, SteelFIS3F3 3⁄ 8\SteelBLFIS3F3 Ball Lock, SteelFIS4F4 1⁄ 2\SteelBLFIS4F4 Ball Lock, SteelMale ThreadPart No. MPT DescriptionFIS2M2 1⁄4\SteelBLFIS2M2 Ball Lock, SteelFIS3M3 3⁄ 8\SteelBLFIS3M3 Ball Lock, SteelFIS4M4 1⁄ 2\SteelBLFIS4M4 Ball Lock, Steel
