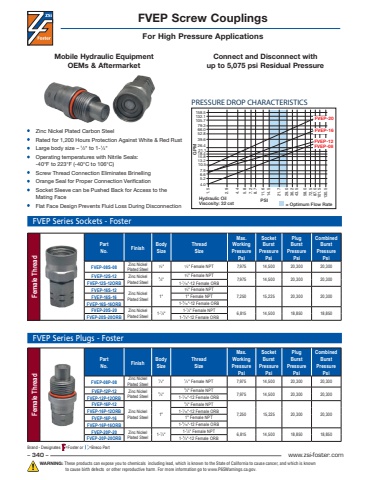

Brand - Designates =Foster or =Breco Part– 340 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.FVEP Screw Couplings For High Pressure ApplicationsFemale ThreadPart No. Finish Body SizeThreadSizeMax.WorkingPressurePsiSocket BurstPressurePsiPlug BurstPressurePsiCombined BurstPressurePsiFVEP-08P-08 Zinc Nickel Plated Steel1⁄ 2\1⁄ 2\7,975 14,500 20,300 20,300FVEP-12P-12 Zinc Nickel Plated Steel3⁄4\3⁄4\7,975 14,500 20,300 20,300 FVEP-12P-12ORB 1-1⁄ 16\FVEP-16P-12Zinc Nickel Plated Steel 1\3⁄4\7,250 15,225 20,300 20,300 FVEP-16P-12ORB 1-1⁄ 16\FVEP-16P-16 1\FVEP-16P-16ORB 1-5⁄ 16\FVEP-20P-20 Zinc Nickel Plated Steel 1-1⁄4\1-1⁄4\6,815 14,500 18,850 18,850 FVEP-20P-20ORB 1-5⁄ 8\Female ThreadPart No. Finish Body SizeThreadSizeMax.WorkingPressurePsiSocket BurstPressurePsiPlug BurstPressurePsiCombined BurstPressurePsiFVEP-08S-08 Zinc Nickel Plated Steel1⁄ 2\1⁄ 2\7,975 14,500 20,300 20,300FVEP-12S-12 Zinc Nickel Plated Steel3⁄4\3⁄4\7,975 14,500 20,300 20,300 FVEP-12S-12ORB 1-1⁄ 16\FVEP-16S-12Zinc Nickel Plated Steel 1\3⁄4\FVEP-16S-16 1\7,250 15,225 20,300 20,300FVEP-16S-16ORB 1-5⁄ 16\FVEP-20S-20 Zinc Nickel Plated Steel 1-1⁄4\1-1⁄4\6,815 14,500 18,850 18,850 FVEP-20S-20ORB 1-5⁄ 8\PRESSURE DROP CHARACTERISTICSFVEP-20FVEP-16FVEP-08FVEP-12= Optimum Flow RateHydraulic OilViscosity: 32 cst158.5132.1105.779.366.052.839.626.421.118.415.813.210.57.96.65.24.01.5 2.9 4.4 5.8 7.2 8.7 11.6 14.5 21.7 29.0 36.2 43.5 58.0 72.5 87.0 101.5 130.5GPMPSIFVEP Series Sockets - FosterFVEP Series Plugs - Foster• Zinc Nickel Plated Carbon Steel• Rated for 1,200 Hours Protection Against White & Red Rust• Large body size – 1⁄2\⁄4\• Operating temperatures with Nitrile Seals: -40°F to 223°F (-40°C to 106°C)• Screw Thread Connection Eliminates Brinelling• Orange Seal for Proper Connection Verification• Socket Sleeve can be Pushed Back for Access to the Mating Face• Flat Face Design Prevents Fluid Loss During DisconnectionConnect and Disconnect with up to 5,075 psi Residual PressureMobile Hydraulic Equipment OEMs & Aftermarket
