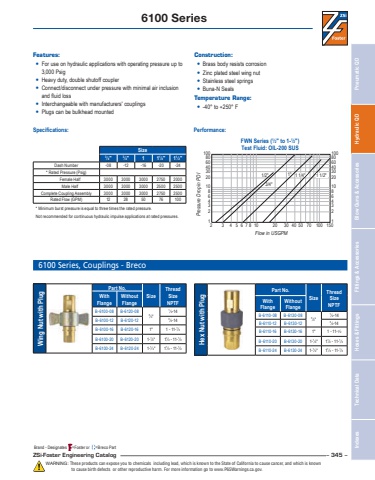

Indexes Technical Data Hoses & Fittings Fittings & Accessories Blow Guns & Accessories Hydraulic QD Pneumatic QDBrand - Designates =Foster or =Breco PartZSi-Foster Engineering Catalog – 345 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.6100 SeriesFeatures:• For use on hydraulic applications with operating pressure up to 3,000 Psig• Heavy duty, double shutoff coupler• Connect/disconnect under pressure with minimal air inclusion and fluid loss• Interchangeable with manufacturers' couplings• Plugs can be bulkhead mountedConstruction:• Brass body resists corrosion• Zinc plated steel wing nut• Stainless steel springs• Buna-N SealsTemperature Range:• -40° to +250° FSize3⁄4\3⁄4\1 11⁄4\11⁄2\Dash Number -08 -12 -16 -20 -24* Rated Pressure (Psig)Female Half 3000 3000 3000 2750 2000Male Half 3000 3000 3000 2500 2500Complete Coupling Assembly 3000 3000 3000 2750 2500Rated Flow (GPM) 12 28 50 76 100Specifications: Performance:22133445 667 88101020 2040 4030 306050 80100 10021346810204030608010070 150 1/2\3/4\1\1 1/4\1 1/2\Flow in USGPMPressure Drop in PDIFWN Series (1⁄2\⁄2\Test Fluid: OIL-200 SUS* Minimum burst pressure is equal to three times the rated pressure.Not recommended for continuous hydraulic impulse applications at rated pressures. Wing Nut with PlugPart No.SizeThread SizeNPTFWith FlangeWithout FlangeB-6100-08 B-6120-08 3⁄4\1⁄ 2-14B-6100-12 B-6120-12 3⁄4-14B-6100-16 B-6120-16 1\1 - 11-1⁄ 2B-6100-20 B-6120-20 1-1⁄4\11⁄4 - 11-1⁄ 2B-6100-24 B-6120-24 1-1⁄ 2\11⁄ 2 - 11-1⁄ 2Hex Nut with PlugPart No.SizeThread SizeNPTFWith FlangeWithout FlangeB-6110-08 B-6130-08 3⁄4\1⁄ 2-14B-6110-12 B-6130-12 3⁄4-14B-6110-16 B-6130-16 1\1 - 11-1⁄ 2B-6110-20 B-6130-20 1-1⁄4\11⁄4 - 11-1⁄ 2B-6110-24 B-6130-24 1-1⁄ 2\11⁄ 2 - 11-1⁄ 26100 Series, Couplings - Breco
