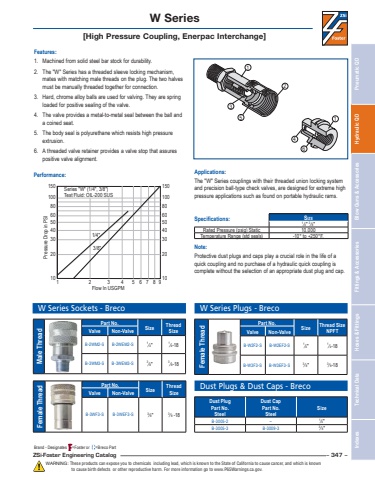

Indexes Technical Data Hoses & Fittings Fittings & Accessories Blow Guns & Accessories Hydraulic QD Pneumatic QDBrand - Designates =Foster or =Breco PartZSi-Foster Engineering Catalog – 347 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Features:1. Machined from solid steel bar stock for durability.2. The \mates with matching male threads on the plug. The two halves must be manually threaded together for connection.3. Hard, chrome alloy balls are used for valving. They are spring loaded for positive sealing of the valve.4. The valve provides a metal-to-metal seal between the ball and a coined seat.5. The body seal is polyurethane which resists high pressure extrusion.6. A threaded valve retainer provides a valve stop that assures positive valve alignment.Applications: The \and precision ball-type check valves, are designed for extreme high pressure applications such as found on portable hydraulic rams.Size 1⁄4\⁄ 8\Rated Pressure (psig) Static 10,000Temperature Range (std seals) -10° to +250°F.Specifications:1132456Performance:Note:Protective dust plugs and caps play a crucial role in the life of a quick coupling and no purchase of a hydraulic quick coupling is complete without the selection of an appropriate dust plug and cap.Dust Plugs & Dust Caps - BrecoDust Plug Part No. SteelDust Cap Part No. SteelSize B-3005-2 – 1⁄4\B-3005-3 B-3009-3 3⁄ 8\W Series Sockets - Breco Male ThreadPart No.Size Thread Valve Non-Valve SizeB-2WM2-S B-2WEM2-S 1⁄4\1⁄4-18B-3WM3-S B-3WEM3-S 3⁄ 8\3⁄ 8-18W Series Plugs - Breco Female ThreadPart No.Size Thread SizeValve Non-Valve NPFTB-W2F2-S B-W2EF2-S 1⁄4\1⁄4-18B-W3F3-S B-W3EF3-S 3⁄ 8\3⁄ 8-181 2 3 4 5 6 7 8 910204030605080100150102040306050801001501/4\3/8\Series \Test Fluid: OIL-200 SUSPressure Drop in PSIFlow In USGPMW Series[High Pressure Coupling, Enerpac Interchange]Female ThreadPart No.Size Thread Valve Non-Valve SizeB-3WF3-S B-3WEF3-S 3⁄ 8\3⁄ 8 -18
