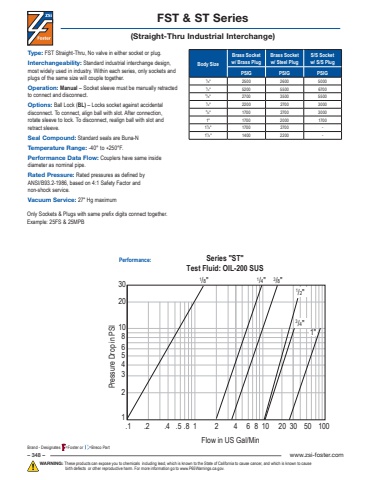

Brand - Designates =Foster or =Breco Part– 348 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Type: FST Straight-Thru, No valve in either socket or plug.Interchangeability: Standard industrial interchange design, most widely used in industry. Within each series, only sockets and plugs of the same size will couple together.Operation: Manual – Socket sleeve must be manually retracted to connect and disconnect.Options: Ball Lock (BL) – Locks socket against accidental disconnect. To connect, align ball with slot. After connection, rotate sleeve to lock. To disconnect, realign ball with slot and retract sleeve. Seal Compound: Standard seals are Buna-NTemperature Range: -40° to +250°F.Performance Data Flo Couplers have same inside diameter as nominal pipe.Rated Pressure: Rated pressures as defined by ANSI/B93.2-1986, based on 4:1 Safety Factor and non-shock service.Vacuum Service: 27\Body SizeBrass Socketw/ Brass PlugBrass Socketw/ Steel PlugS/S Socketw/ S/S PlugPSIG PSIG PSIG1/8\2500 2600 50001/4\5200 5500 67003/8\2700 3500 55001/2\2200 2700 30003/4\1700 2700 30001\1700 2000 170011/4\1700 2700 -11/2\1400 2200 -Only Sockets & Plugs with same prefix digits connect together. Example: 25FS & 25MPBFST & ST Series(Straight-Thru Industrial Interchange)Performance:20 10 30 1/8\1/4\3/8\54321.1 .2 .4 .5 .8 1 2 4 6 8 10 20 30 50 100681/2\3/4\1\Pressure Drop in PSIFlow in US Gal/MinSeries \Test Fluid: OIL-200 SUS
