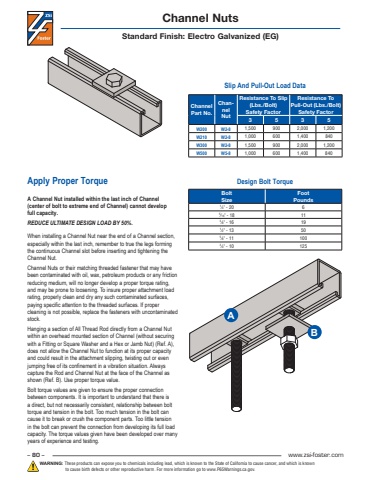

– 80 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Channel NutsStandard Finish: Electro Galvanized (EG)Apply Proper TorqueChannel Part No.Channel NutResistance To Slip (Lbs./Bolt) Safety FactorResistance To Pull-Out (Lbs./Bolt) Safety Factor3 5 3 5W200 W2-8 1,500 900 2,000 1,200W210 W2-8 1,000 600 1,400 840W300 W2-8 1,500 900 2,000 1,200W500 W5-8 1,000 600 1,400 840Bolt SizeFoot Pounds1⁄4\65⁄16\113⁄8\191⁄2\505⁄8\1003⁄4\125A Channel Nut installed within the last inch of Channel (center of bolt to extreme end of Channel) cannot develop full capacity.REDUCE ULTIMATE DESIGN LOAD BY 50%.When installing a Channel Nut near the end of a Channel section, especially within the last inch, remember to true the legs forming the continuous Channel slot before inserting and tightening the Channel Nut.Channel Nuts or their matching threaded fastener that may have been contaminated with oil, wax, petroleum products or any friction reducing medium, will no longer develop a proper torque rating, and may be prone to loosening. To insure proper attachment load rating, properly clean and dry any such contaminated surfaces, paying specific attention to the threaded surfaces. If proper cleaning is not possible, replace the fasteners with uncontaminated stock.Hanging a section of All Thread Rod directly from a Channel Nut within an overhead mounted section of Channel (without securing with a Fitting or Square Washer and a Hex or Jamb Nut) (Ref. A), does not allow the Channel Nut to function at its proper capacity and could result in the attachment slipping, twisting out or even jumping free of its confinement in a vibration situation. Always capture the Rod and Channel Nut at the face of the Channel as shown (Ref. B). Use proper torque value.Bolt torque values are given to ensure the proper connection between components. It is important to understand that there is a direct, but not necessarily consistent, relationship between bolt torque and tension in the bolt. Too much tension in the bolt can cause it to break or crush the component parts. Too little tension in the bolt can prevent the connection from developing its full load capacity. The torque values given have been developed over many years of experience and testing. ABSlip And Pull-Out Load DataDesign Bolt Torque
