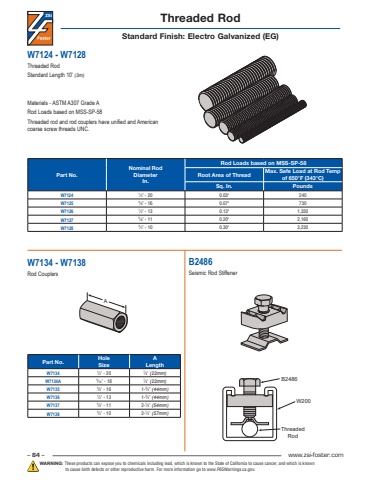

– 84 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Threaded RodStandard Finish: Electro Galvanized (EG)W7134 - W7138Rod CouplersMaterials - ASTM A307 Grade ARod Loads based on MSS-SP-58 Threaded rod and rod couplers have unified and American coarse screw threads UNC.W7124 - W7128 Threaded RodStandard Length 10' (3m)APart No. Hole SizeA LengthW7134 1⁄4\7⁄8\W7134A 5⁄16\7⁄8\W7135 3⁄8\1-3⁄4\W7136 1⁄2\1-3⁄4\W7137 5⁄8\2-1⁄8\W7138 3⁄4\2-1⁄4\Part No.Nominal Rod DiameterIn.Rod Loads based on MSS-SP-58Root Area of Thread Max. Safe Load at Rod Temp of 650°F (343°C)Sq. In. PoundsW7124 1⁄4\0.03\240W7125 3⁄8\0.07\730W7126 1⁄2\0.13\1,350W7127 5⁄8\0.20\2,160W7128 3⁄4\0.30\3,230B2486Seismic Rod StiffenerB2486W200ThreadedRod
