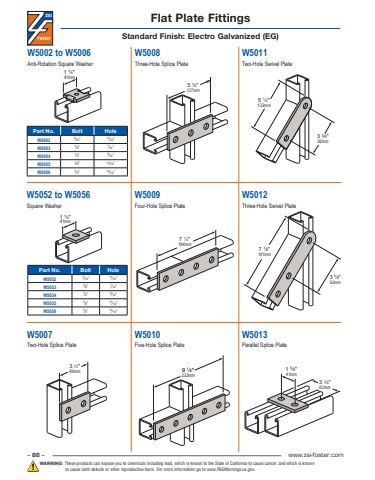

– 86 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Flat Plate FittingsStandard Finish: Electro Galvanized (EG)W5002 to W5006Anti-Rotation Square WasherW5052 to W5056Square Washer1 5⁄8\41mm3 1⁄2\89mm5 3⁄8\137mm7 1⁄4\184mm9 1⁄8\232mm1 5⁄8\41mmW5010 Five-Hole Splice PlatePart No. Bolt HoleW5052 5⁄16\11⁄32\W5053 3⁄8\7⁄16\W5054 1⁄2\9⁄16\W5055 5⁄8\11⁄16\W5056 3⁄4\13⁄16\Part No. Bolt HoleW5002 5⁄16\11⁄32\W5003 3⁄8\7⁄16\W5004 1⁄2\9⁄16\W5005 5⁄8\11⁄16\W5006 3⁄4\13⁄16\W5009 Four-Hole Splice Plate W5007Two-Hole Splice PlateW5008Three-Hole Splice Plate5 1⁄4\133mm3 5⁄8\92mm7 1⁄8\181mm3 5⁄8\92mm1 5⁄8\41mm3 1⁄4\83mmW5012Three-Hole Swivel PlateW5011Two-Hole Swivel Plate W5013Parallel Splice Plate
