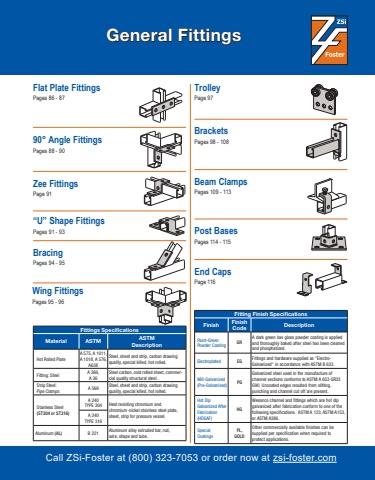

Call ZSi-Foster at (800) 323-7053 or order now at zsi-foster.comGeneral FittingsFitting Finish SpecificationsFinish Finish Code DescriptionPaint-Green Powder Coating GRA dark green low gloss powder coating is applied and thoroughly baked after steel has been cleaned and phosphatized.Electroplated EG Fittings and hardware supplied as \,Galvanized\Mill-Galvanized (Pre-Galvanized) PGGalvanized steel used in the manufacture of channel sections conforms to ASTM A 653 GR33 G90. Uncoated edges resulted from slitting, punching and channel cut off are present.Hot Dip Galvanized After Fabrication (HDGAF)HGWesanco channel and fittings which are hot dip galvanized after fabrication conform to one of the following specifications. ASTM A 123, ASTM A153, or ASTM A386.Special CoatingsPL, GOLDOther commercially available finishes can be supplied per specification when required to protect applications.Fittings SpecificationsMaterial ASTM ASTM DescriptionHot Rolled PlateA 575, A 1011, A 1018, A 576, A638Steel, sheet and strip, carbon drawing quality, special killed, hot rolled.Fitting: Steel A 366, A 36 Steel carbon, cold rolled sheet, commercial quality structural steel.Strip Steel: Pipe Clamps A 569 Steel, sheet and strip, carbon drawing quality, special killed, hot rolled.Stainless Steel (ST304 or ST316)A 240 TYPE 304 Heat resisting chromium and chromium-nickel stainless steel plate, A 240 sheet, strip for pressure vessel.TYPE 316Aluminum (AL) B 221 Aluminum alloy extruded bar, rod, wire, shape and tube.Flat Plate FittingsPages 86 - 87Wing FittingsPages 95 - 96TrolleyPage 97 BracketsPages 98 - 108Post BasesPages 114 - 115End CapsPage 116Beam ClampsPages 109 - 11390° Angle FittingsPages 88 - 90Zee FittingsPage 91“U” Shape FittingsPages 91 - 93BracingPages 94 - 95
