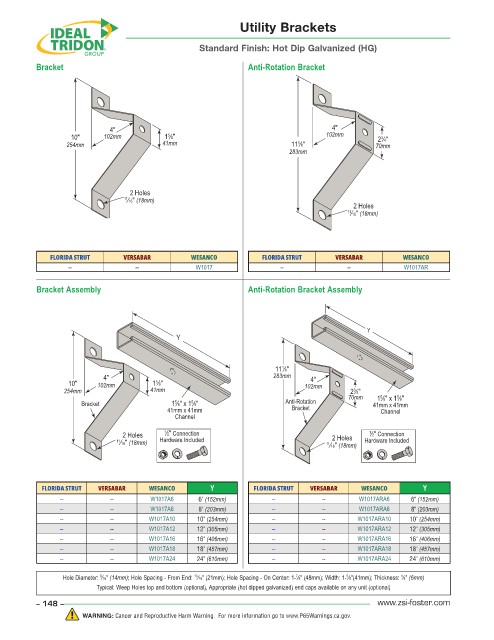

Page 148 - ZSi-Foster Product Catalog
P. 148

Utility Brackets


                                                  Standard Finish: Hot Dip Galvanized (HG)

          Bracket                                             Anti-Rotation Bracket







                            4"                                                     4"
                   10"     102mm          1 ⁄8"                                   102mm        2 ⁄4"
                                           5
                                                                                               3
                                                                           1
                  254mm                  41mm                            11 ⁄8"               70mm
                                                                         283mm


                                  2 Holes
                                11 ⁄16" (18mm)
                                                                                         2 Holes
                                                                                       11 ⁄16" (18mm)





             FLORIDA STRUT      VERSABAR        WESANCO           FLORIDA STRUT     VERSABAR         WESANCO
                  --               --             W1017               --               --            W1017AR

          Bracket Assembly                                    Anti-Rotation Bracket Assembly




                                                                                            Y
                                             Y



                                                                     11 ⁄8"
                                                                       1
                           4"                                        283mm    4"
                  10"    102mm         1 ⁄8"                                102mm
                                        5
                 254mm                41mm                                             70mm    5   5
                                                                                        2 ⁄4"
                                                                                         3
                                                                                              1 ⁄8" x 1 ⁄8"
                                            5
                                                5
                     Bracket                1 ⁄8" x 1 ⁄8"               Anti-Rotation        41mm x 41mm
                                           41mm x 41mm                   Bracket               Channel
                                            Channel
                                2 Holes   1 ⁄2" Connection                          2 Holes  1 ⁄2" Connection
                              11 ⁄16" (18mm)  Hardware Included                   11 ⁄16" (18mm)  Hardware Included


           FLORIDA STRUT  VERSABAR    WESANCO        Y          FLORIDA STRUT  VERSABAR    WESANCO        Y
                --          --        W1017A6     6" (152mm)        --           --       W1017ARA6    6" (152mm)
                --          --        W1017A8     8" (203mm)        --           --       W1017ARA8    8" (203mm)
                --          --        W1017A10    10" (254mm)       --           --       W1017ARA10  10" (254mm)
                --          --        W1017A12    12" (305mm)       --           --       W1017ARA12  12" (305mm)
                --          --        W1017A16    16" (406mm)       --           --       W1017ARA16  16" (406mm)
                --          --        W1017A18    18" (457mm)       --           --       W1017ARA18  18" (457mm)
                --          --        W1017A24    24" (610mm)       --           --       W1017ARA24  24" (610mm)

                                                                                                    1
                                                 13
                          9
                                                                                       5
                                                                          7
                 Hole Diameter:  ⁄16" (14mm); Hole Spacing - From End:  ⁄16" (21mm); Hole Spacing - On Center: 1- ⁄8" (48mm); Width: 1- ⁄8"(41mm); Thickness:  ⁄4" (6mm)
                         Typical: Weep Holes top and bottom (optional), Appropriate (hot dipped galvanized) end caps available on any unit (optional)
          – 148 –                                                                              www.zsi-foster.com
