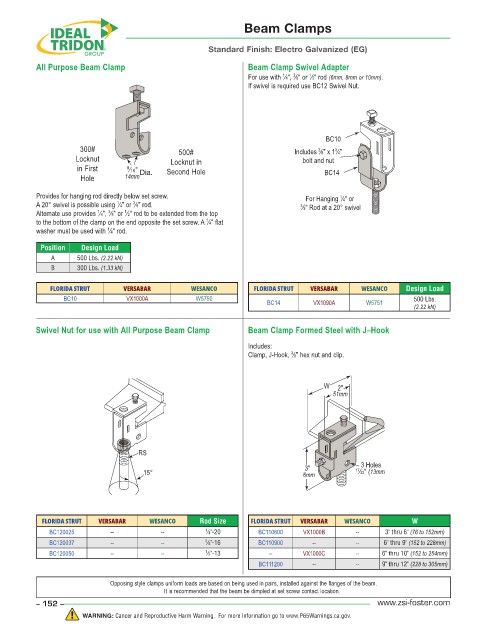

Page 152 - ZSi-Foster Product Catalog

Beam Clamps

Standard Finish: Electro Galvanized (EG)

All Purpose Beam Clamp Beam Clamp Swivel Adapter
1
3
1
For use with ⁄4", ⁄8" or ⁄2" rod (6mm, 8mm or 10mm).
If swivel is required use BC12 Swivel Nut.

BC10
300# 500# Includes ⁄8" x 1 ⁄4"
3
3
Locknut Locknut in bolt and nut
in First 9 ⁄16" Dia. Second Hole BC14
Hole 14mm

Provides for hanging rod directly below set screw. For Hanging ⁄4" or
1
3
1
A 20° swivel is possible using ⁄4" or ⁄8" rod. 3 ⁄8" Rod at a 20° swivel
3
Alternate use provides ⁄4", ⁄8" or ⁄2" rod to be extended from the top
1
1
1
to the bottom of the clamp on the end opposite the set screw. A ⁄4" flat
1
washer must be used with ⁄4" rod.
Position Design Load
A 500 Lbs. (2.22 kN)
B 300 Lbs. (1.33 kN)
FLORIDA STRUT VERSABAR WESANCO FLORIDA STRUT VERSABAR WESANCO Design Load
BC10 VX1000A W5750 500 Lbs.
BC14 VX1090A W5751
(2.22 kN)
Swivel Nut for use with All Purpose Beam Clamp Beam Clamp Formed Steel with J–Hook

Includes:
Clamp, J-Hook, ⁄8" hex nut and clip.
3

W 2"
51mm

RS

3" 3 Holes
15° 76mm 17 ⁄32" (13mm)

FLORIDA STRUT VERSABAR WESANCO Rod Size FLORIDA STRUT VERSABAR WESANCO W
BC120025 -- -- 1 ⁄4"-20 BC110600 VX1000B -- 3" thru 6" (76 to 152mm)
BC120037 -- -- 3 ⁄8"-16 BC110900 -- -- 6" thru 9" (152 to 228mm)
BC120050 -- -- 1 ⁄2"-13 -- VX1000C -- 6" thru 10" (152 to 254mm)
BC111200 -- -- 9" thru 12" (228 to 305mm)

Opposing style clamps uniform loads are based on being used in pairs, installed against the flanges of the beam.
It is recommended that the beam be dimpled at set screw contact location.
– 152 – www.zsi-foster.com
