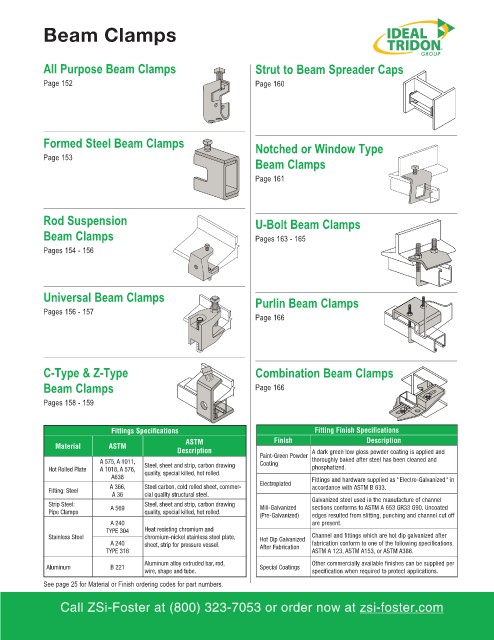

Page 151 - ZSi-Foster Product Catalog

Beam Clamps

All Purpose Beam Clamps Strut to Beam Spreader Caps
Page 152 Page 160

Formed Steel Beam Clamps Notched or Window Type

Page 153
Beam Clamps
Page 161

Rod Suspension U-Bolt Beam Clamps
Beam Clamps Pages 163 - 165

Pages 154 - 156

Universal Beam Clamps Purlin Beam Clamps

Pages 156 - 157
Page 166

C-Type & Z-Type Combination Beam Clamps

Beam Clamps Page 166

Pages 158 - 159

Fittings Specifications Fitting Finish Specifications
ASTM Finish Description
Material ASTM
Description A dark green low gloss powder coating is applied and
A 575, A 1011, Paint-Green Powder thoroughly baked after steel has been cleaned and
Coating
Hot Rolled Plate A 1018, A 576, Steel, sheet and strip, carbon drawing phosphatized.
quality, special killed, hot rolled.
A638 Fittings and hardware supplied as "Electro-Galvanized" in
Electroplated
A 366, Steel carbon, cold rolled sheet, commer- accordance with ASTM B 633.
Fitting: Steel
A 36 cial quality structural steel.
Strip Steel: A 569 Steel, sheet and strip, carbon drawing Mill-Galvanized Galvanized steel used in the manufacture of channel
sections conforms to ASTM A 653 GR33 G90. Uncoated
Pipe Clamps quality, special killed, hot rolled.
(Pre-Galvanized) edges resulted from slitting, punching and channel cut off
A 240 are present.
TYPE 304 Heat resisting chromium and
Stainless Steel chromium-nickel stainless steel plate, Hot Dip Galvanized Channel and fittings which are hot dip galvanized after
A 240 sheet, strip for pressure vessel. fabrication conform to one of the following specifications.
TYPE 316 After Fabrication ASTM A 123, ASTM A153, or ASTM A386.
Aluminum alloy extruded bar, rod, Other commercially available finishes can be supplied per
Aluminum B 221 Special Coatings
wire, shape and tube. specification when required to protect applications.
See page 25 for Material or Finish ordering codes for part numbers.
Call ZSi-Foster at (800) 323-7053 or order now at zsi-foster.com
