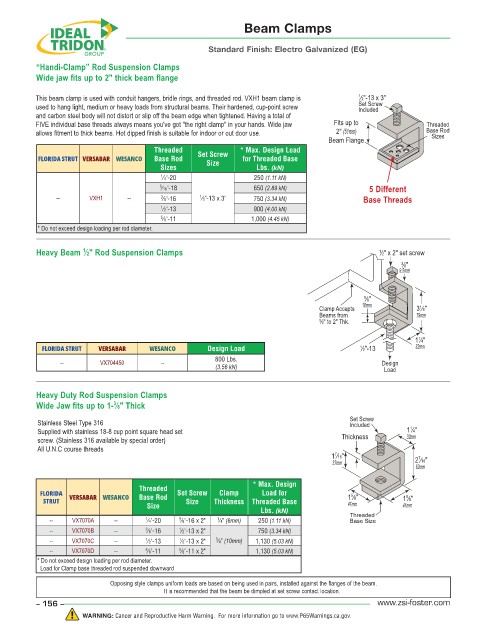

Beam Clamps

Standard Finish: Electro Galvanized (EG)

“Handi-Clamp” Rod Suspension Clamps
Wide jaw fits up to 2" thick beam flange

This beam clamp is used with conduit hangers, bridle rings, and threaded rod. VXH1 beam clamp is 1 ⁄2"-13 x 3"
used to hang light, medium or heavy loads from structural beams. Their hardened, cup-point screw Set Screw
Included
and carbon steel body will not distort or slip off the beam edge when tightened. Having a total of
FIVE individual base threads always means you've got "the right clamp" in your hands. Wide jaw Fits up to Threaded
allows fitment to thick beams. Hot dipped finish is suitable for indoor or out door use. 2" (51mm) Base Rod
Sizes
Beam Flange
Threaded Set Screw * Max. Design Load
FLORIDA STRUT VERSABAR WESANCO Base Rod Size for Threaded Base
Sizes Lbs. (kN)
1 ⁄4"-20 250 (1.11 kN)
5 ⁄16"-18 650 (2.89 kN) 5 Different
-- VXH1 -- 3 ⁄8"-16 1 ⁄2"-13 x 3" 750 (3.34 kN) Base Threads
1 ⁄2"-13 900 (4.00 kN)
5 ⁄8"-11 1,000 (4.45 kN)
* Do not exceed design loading per rod diameter.

Heavy Beam ⁄2" Rod Suspension Clamps 1 ⁄2" x 2" set screw
1
3 ⁄8"
9.5mm

5 ⁄8"
1
Clamp Accepts 16mm 3 ⁄8"
Beams from 79mm
5 ⁄8" to 2" Thk.
1 ⁄4"
1
FLORIDA STRUT VERSABAR WESANCO Design Load 1 ⁄2"-13 32mm
800 Lbs.
-- VX704450 -- Design
(3.56 kN) Load

Heavy Duty Rod Suspension Clamps
3
Wide Jaw fits up to 1- ⁄8" Thick
Set Screw
Stainless Steel Type 316 Included
1
Supplied with stainless 18-8 cup point square head set 1 ⁄4"
screw. (Stainless 316 available by special order) Thickness 32mm
All U.N.C course threads
1 ⁄16" 7
7
37mm 2 ⁄16"
62mm
* Max. Design
Threaded
FLORIDA VERSABAR WESANCO Base Rod Set Screw Clamp Load for 1 ⁄8" 5
5
STRUT Size Thickness Threaded Base 41mm 1 ⁄8"
Size 41mm
Lbs. (kN)
-- VX7070A -- 1 ⁄4"-20 3 ⁄8"-16 x 2" 1 ⁄4" (6mm) 250 (1.11 kN) Threaded
Base Size
-- VX7070B -- 3 ⁄8"-16 1 ⁄2"-13 x 2" 750 (3.34 kN)
-- VX7070C -- 1 ⁄2"-13 1 ⁄2"-13 x 2" 3 ⁄8" (10mm) 1,130 (5.03 kN)
-- VX7070D -- 5 ⁄8"-11 5 ⁄8"-11 x 2" 1,130 (5.03 kN)
* Do not exceed design loading per rod diameter.
Load for Clamp base threaded rod suspended downward

Opposing style clamps uniform loads are based on being used in pairs, installed against the flanges of the beam.
It is recommended that the beam be dimpled at set screw contact location.
