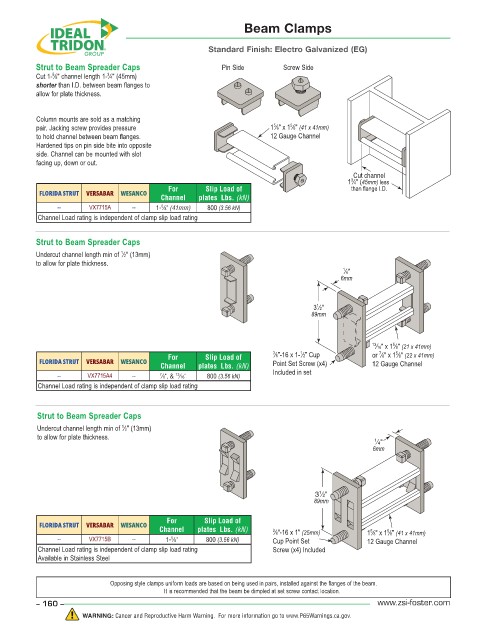

Page 160 - ZSi-Foster Product Catalog

Beam Clamps

Standard Finish: Electro Galvanized (EG)

Strut to Beam Spreader Caps Pin Side Screw Side
5
3
Cut 1- ⁄8" channel length 1- ⁄4" (45mm)
shorter than I.D. between beam flanges to
allow for plate thickness.

Column mounts are sold as a matching
5
5
pair. Jacking screw provides pressure 1 ⁄8" x 1 ⁄8" (41 x 41mm)
to hold channel between beam flanges. 12 Gauge Channel
Hardened tips on pin side bite into opposite
side. Channel can be mounted with slot
facing up, down or out.
Cut channel
1 ⁄4" (45mm) less
3
For Slip Load of than flange I.D.
FLORIDA STRUT VERSABAR WESANCO
Channel plates Lbs. (kN)
5
-- VX7715A -- 1- ⁄8" (41mm) 800 (3.56 kN)
Channel Load rating is independent of clamp slip load rating

Strut to Beam Spreader Caps
1
Undercut channel length min of ⁄2" (13mm)
to allow for plate thickness.
1 ⁄4"
6mm

1
3 ⁄2"
89mm

5
13 ⁄16" x 1 ⁄8" (21 x 41mm)
3 ⁄8"-16 x 1- ⁄2" Cup 7 5
1
For Slip Load of or ⁄8" x 1 ⁄8" (22 x 41mm)
FLORIDA STRUT VERSABAR WESANCO Point Set Screw (x4) 12 Gauge Channel
Channel plates Lbs. (kN)
13
-- VX7715A4 -- 7 ⁄8", & ⁄16" 800 (3.56 kN) Included in set
Channel Load rating is independent of clamp slip load rating
Strut to Beam Spreader Caps
Undercut channel length min of ⁄2" (13mm)
1
to allow for plate thickness. 1 ⁄4"
6mm

3 ⁄2"
1
89mm
For Slip Load of
FLORIDA STRUT VERSABAR WESANCO
Channel plates Lbs. (kN) 3 ⁄8"-16 x 1" (25mm) 1 ⁄8" x 1 ⁄8" (41 x 41mm)
5
5
5
-- VX7715B -- 1- ⁄8" 800 (3.56 kN) Cup Point Set 12 Gauge Channel
Channel Load rating is independent of clamp slip load rating Screw (x4) Included
Available in Stainless Steel
Opposing style clamps uniform loads are based on being used in pairs, installed against the flanges of the beam.
It is recommended that the beam be dimpled at set screw contact location.
