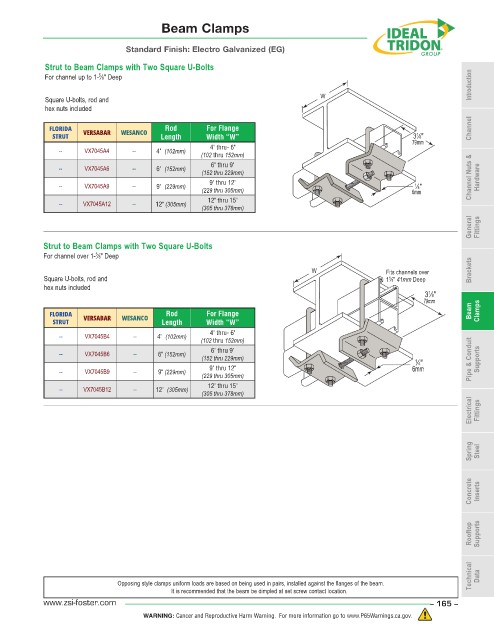

Page 165 - ZSi-Foster Product Catalog

Beam Clamps

Standard Finish: Electro Galvanized (EG)

Strut to Beam Clamps with Two Square U-Bolts
5
For channel up to 1- ⁄8" Deep Introduction
W
Square U-bolts, rod and
hex nuts included

FLORIDA Rod For Flange Channel
STRUT VERSABAR WESANCO Length Width “W” 3 ⁄8"
1
79mm
-- VX7045A4 -- 4" (102mm) 4" thru- 6"
(102 thru 152mm)
6" thru 9"
-- VX7045A6 -- 6" (152mm)
(152 thru 229mm) Channel Nuts & Hardware
9" thru 12"
-- VX7045A9 -- 9" (229mm) 1 ⁄4"
(229 thru 305mm) 6mm
12" thru 15"
-- VX7045A12 -- 12" (305mm)
(305 thru 378mm)
General Fittings

Strut to Beam Clamps with Two Square U-Bolts
5
For channel over 1- ⁄8" Deep
W Fits channels over Brackets
Square U-bolts, rod and 1 ⁄8" 41mm Deep
5
hex nuts included
3 ⁄8"
1
79mm
FLORIDA VERSABAR WESANCO Rod For Flange Beam Clamps
STRUT Length Width “W”
4" thru- 6"
-- VX7045B4 -- 4" (102mm)
(102 thru 152mm)
6" thru 9"
-- VX7045B6 -- 6" (152mm)
(152 thru 229mm) 1 ⁄4" Pipe & Conduit Supports
9" thru 12" 6mm
-- VX7045B9 -- 9" (229mm)
(229 thru 305mm)
12" thru 15"
-- VX7045B12 -- 12" (305mm)
(305 thru 378mm)
Electrical Fittings

Spring Steel

Concrete Inserts

Rooftop Supports

Technical Data

Opposing style clamps uniform loads are based on being used in pairs, installed against the flanges of the beam.
It is recommended that the beam be dimpled at set screw contact location.
