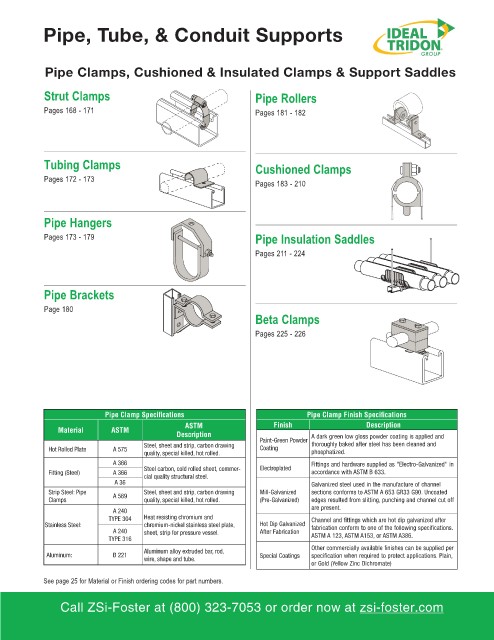

Pipe, Tube, & Conduit Supports

Pipe Clamps, Cushioned & Insulated Clamps & Support Saddles

Strut Clamps Pipe Rollers
Pages 168 - 171 Pages 181 - 182

Tubing Clamps Cushioned Clamps

Pages 172 - 173
Pages 183 - 210

Pipe Hangers

Pages 173 - 179 Pipe Insulation Saddles
Pages 211 - 224

Pipe Brackets

Page 180
Beta Clamps

Pages 225 - 226

Pipe Clamp Specifications Pipe Clamp Finish Specifications
ASTM Finish Description
Material ASTM
Description A dark green low gloss powder coating is applied and
Steel, sheet and strip, carbon drawing Paint-Green Powder thoroughly baked after steel has been cleaned and
Hot Rolled Plate A 575 Coating
quality, special killed, hot rolled. phosphatized.
A 366 Fittings and hardware supplied as "Electro-Galvanized" in
Fitting (Steel) A 366 Steel carbon, cold rolled sheet, commer- Electroplated accordance with ASTM B 633.
cial quality structural steel.
A 36 Galvanized steel used in the manufacture of channel
Strip Steel: Pipe A 569 Steel, sheet and strip, carbon drawing Mill-Galvanized sections conforms to ASTM A 653 GR33 G90. Uncoated
Clamps quality, special killed, hot rolled. (Pre-Galvanized) edges resulted from slitting, punching and channel cut off
are present.
A 240
TYPE 304 Heat resisting chromium and Channel and fittings which are hot dip galvanized after
Stainless Steel: chromium-nickel stainless steel plate, Hot Dip Galvanized fabrication conform to one of the following specifications.
A 240 sheet, strip for pressure vessel. After Fabrication
TYPE 316 ASTM A 123, ASTM A153, or ASTM A386.
Aluminum alloy extruded bar, rod, Other commercially available finishes can be supplied per
Aluminum: B 221 Special Coatings specification when required to protect applications. Plain,
wire, shape and tube.
or Gold (Yellow Zinc Dichromate)
See page 25 for Material or Finish ordering codes for part numbers.
