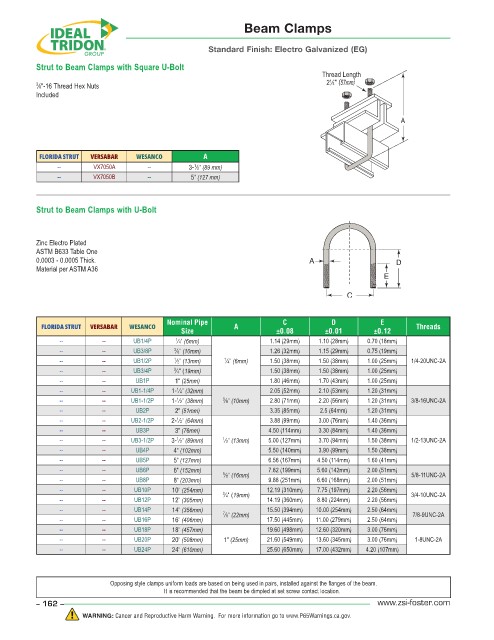

Page 162 - ZSi-Foster Product Catalog

Beam Clamps

Standard Finish: Electro Galvanized (EG)

Strut to Beam Clamps with Square U-Bolt
Thread Length
1
3 ⁄8"-16 Thread Hex Nuts 2 ⁄4" (57mm)
Included

A

FLORIDA STRUT VERSABAR WESANCO A
-- VX7050A -- 3- ⁄2" (89 mm)
1
-- VX7050B -- 5" (127 mm)

Strut to Beam Clamps with U-Bolt

Zinc Electro Plated
ASTM B633 Table One
0.0003 - 0.0005 Thick. A D
Material per ASTM A36
E

C

Nominal Pipe C D E
FLORIDA STRUT VERSABAR WESANCO A Threads
Size ±0.08 ±0.01 ±0.12
-- -- UB1/4P 1 ⁄4" (6mm) 1.14 (29mm) 1.10 (28mm) 0.70 (18mm)
-- -- UB3/8P 3 ⁄8" (10mm) 1.26 (32mm) 1.15 (29mm) 0.75 (19mm)
-- -- UB1/2P 1 ⁄2" (13mm) 1 ⁄4" (6mm) 1.50 (38mm) 1.50 (38mm) 1.00 (25mm) 1/4-20UNC-2A
-- -- UB3/4P 3 ⁄4" (19mm) 1.50 (38mm) 1.50 (38mm) 1.00 (25mm)
-- -- UB1P 1" (25mm) 1.80 (46mm) 1.70 (43mm) 1.00 (25mm)
-- -- UB1-1/4P 1- ⁄4" (32mm) 2.05 (52mm) 2.10 (53mm) 1.20 (31mm)
1
1
-- -- UB1-1/2P 1- ⁄2" (38mm) 3 ⁄8" (10mm) 2.80 (71mm) 2.20 (56mm) 1.20 (31mm) 3/8-16UNC-2A
-- -- UB2P 2" (51mm) 3.35 (85mm) 2.5 (64mm) 1.20 (31mm)
1
-- -- UB2-1/2P 2- ⁄2" (64mm) 3.88 (99mm) 3.00 (76mm) 1.40 (36mm)
-- -- UB3P 3" (76mm) 4.50 (114mm) 3.30 (84mm) 1.40 (36mm)
1
-- -- UB3-1/2P 3- ⁄2" (89mm) 1 ⁄2" (13mm) 5.00 (127mm) 3.70 (94mm) 1.50 (38mm) 1/2-13UNC-2A
-- -- UB4P 4" (102mm) 5.50 (140mm) 3.90 (99mm) 1.50 (38mm)
-- -- UB5P 5" (127mm) 6.56 (167mm) 4.50 (114mm) 1.60 (41mm)
-- -- UB6P 6" (152mm) 7.82 (199mm) 5.60 (142mm) 2.00 (51mm)
5 ⁄8" (16mm) 5/8-11UNC-2A
-- -- UB8P 8" (203mm) 9.88 (251mm) 6.60 (168mm) 2.00 (51mm)
-- -- UB10P 10" (254mm) 12.19 (310mm) 7.75 (197mm) 2.20 (56mm)
3 ⁄4" (19mm) 3/4-10UNC-2A
-- -- UB12P 12" (305mm) 14.19 (360mm) 8.80 (224mm) 2.20 (56mm)
-- -- UB14P 14" (356mm) 15.50 (394mm) 10.00 (254mm) 2.50 (64mm)
7 ⁄8" (22mm) 7/8-9UNC-2A
-- -- UB16P 16" (406mm) 17.50 (445mm) 11.00 (279mm) 2.50 (64mm)
-- -- UB18P 18" (457mm) 19.60 (498mm) 12.60 (320mm) 3.00 (76mm)
-- -- UB20P 20" (508mm) 1" (25mm) 21.60 (549mm) 13.60 (345mm) 3.00 (76mm) 1-8UNC-2A
-- -- UB24P 24" (610mm) 25.60 (650mm) 17.00 (432mm) 4.20 (107mm)

Opposing style clamps uniform loads are based on being used in pairs, installed against the flanges of the beam.
It is recommended that the beam be dimpled at set screw contact location.
