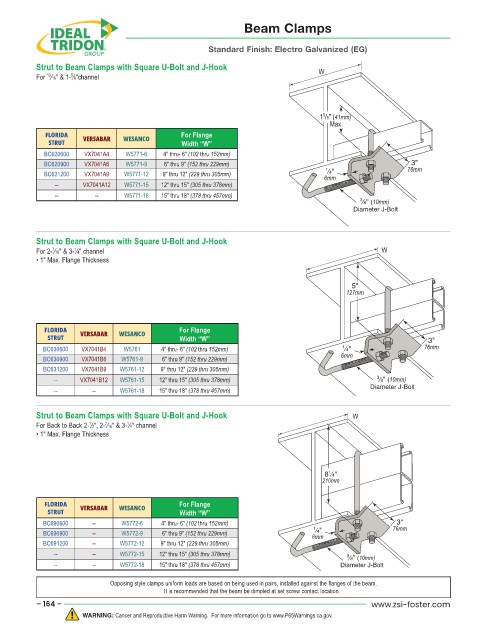

Page 164 - ZSi-Foster Product Catalog

Beam Clamps

Standard Finish: Electro Galvanized (EG)

Strut to Beam Clamps with Square U-Bolt and J-Hook W
13
For ⁄16" & 1- ⁄8"channel
5

5
1 /8" (41mm)
Max
FLORIDA VERSABAR WESANCO For Flange
STRUT Width “W”
BC620600 VX7041A4 W5771-6 4" thru- 6" (102 thru 152mm)
BC620900 VX7041A6 W5771-9 6" thru 9" (152 thru 229mm) 3"
1 ⁄4" 76mm
BC621200 VX7041A9 W5771-12 9" thru 12" (229 thru 305mm)
6mm
-- VX7041A12 W5771-15 12" thru 15" (305 thru 378mm)
-- -- W5771-18 15" thru 18" (378 thru 457mm)
3
⁄8" (10mm)
Diameter J-Bolt

Strut to Beam Clamps with Square U-Bolt and J-Hook
7
1
For 2- ⁄16" & 3- ⁄4" channel W
• 1" Max. Flange Thickness

5"
127mm

FLORIDA VERSABAR WESANCO For Flange
STRUT Width “W” 3"
BC630600 VX7041B4 W5761 4" thru- 6" (102 thru 152mm) 1 ⁄4" 76mm
BC630900 VX7041B6 W5761-9 6" thru 9" (152 thru 229mm) 6mm
BC631200 VX7041B9 W5761-12 9" thru 12" (229 thru 305mm)
-- VX7041B12 W5761-15 12" thru 15" (305 thru 378mm) 3 ⁄8" (10mm)
Diameter J-Bolt
-- -- W5761-18 15" thru 18" (378 thru 457mm)

Strut to Beam Clamps with Square U-Bolt and J-Hook W
For Back to Back 2- ⁄2", 2- ⁄16" & 3- ⁄4" channel
1
1
7
• 1" Max. Flange Thickness

1
8 ⁄4"
210mm
FLORIDA VERSABAR WESANCO For Flange
STRUT Width “W”
BC690600 -- W5772-6 4" thru- 6" (102 thru 152mm) 3"
1 ⁄4" 76mm
BC690900 -- W5772-9 6" thru 9" (152 thru 229mm) 6mm
BC691200 -- W5772-12 9" thru 12" (229 thru 305mm)
-- -- W5772-15 12" thru 15" (305 thru 378mm) 3 ⁄8" (10mm)
-- -- W5772-18 15" thru 18" (378 thru 457mm) Diameter J-Bolt

Opposing style clamps uniform loads are based on being used in pairs, installed against the flanges of the beam.
It is recommended that the beam be dimpled at set screw contact location.
