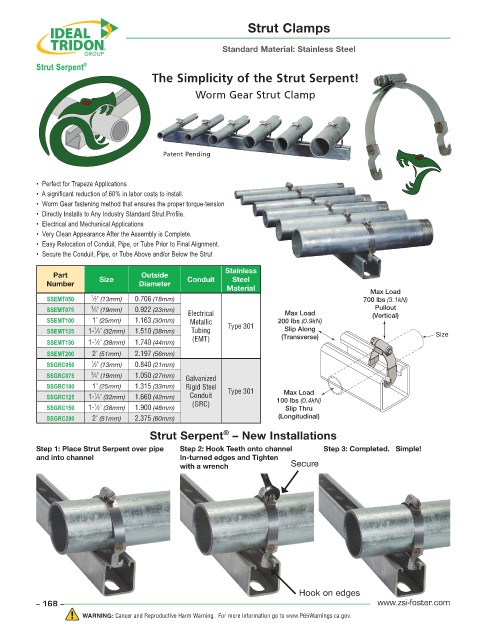

Page 168 - ZSi-Foster Product Catalog

Strut Clamps

Standard Material: Stainless Steel

Strut Serpent ®
The Simplicity of the Strut Serpent!

Worm Gear Strut Clamp

Patent Pending

• • Perfect for Trapeze Applications
• • A significant reduction of 60% in labor costs to install.
• • Worm Gear fastening method that ensures the proper torque-tension
• • Directly Installs to Any Industry Standard Strut Profile.
• • Electrical and Mechanical Applications
• • Very Clean Appearance After the Assembly is Complete.
• • Easy Relocation of Conduit, Pipe, or Tube Prior to Final Alignment.
• • Secure the Conduit, Pipe, or Tube Above and/or Below the Strut
Stainless
Part Size Outside Conduit Steel
Number Diameter
Material Max Load
SSEMT050 1 ⁄2" (13mm) 0.706 (18mm) 700 lbs (3.1kN)
SSEMT075 3 ⁄4" (19mm) 0.922 (23mm) Pullout
Electrical Max Load (Vertical)
SSEMT100 1" (25mm) 1.163 (30mm) Metallic Type 301 200 lbs (0.9kN)
Slip Along
1
SSEMT125 1- ⁄4" (32mm) 1.510 (38mm) Tubing (Transverse) Size
1
SSEMT150 1- ⁄2" (38mm) 1.740 (44mm) (EMT)
SSEMT200 2" (51mm) 2.197 (56mm)
SSGRC050 1 ⁄2" (13mm) 0.840 (21mm)
SSGRC075 3 ⁄4" (19mm) 1.050 (27mm) Galvanized
SSGRC100 1" (25mm) 1.315 (33mm) Rigid Steel Type 301
Max Load
1
SSGRC125 1- ⁄4" (32mm) 1.660 (42mm) Conduit 100 lbs (0.4kN)
1
SSGRC150 1- ⁄2" (38mm) 1.900 (48mm) (GRC) Slip Thru
SSGRC200 2" (51mm) 2.375 (60mm) (Longitudinal)
®
Strut Serpent – New Installations
Step 1: Place Strut Serpent over pipe Step 2: Hook Teeth onto channel Step 3: Completed. Simple!
and into channel In-turned edges and Tighten
with a wrench Secure

Hook on edges
