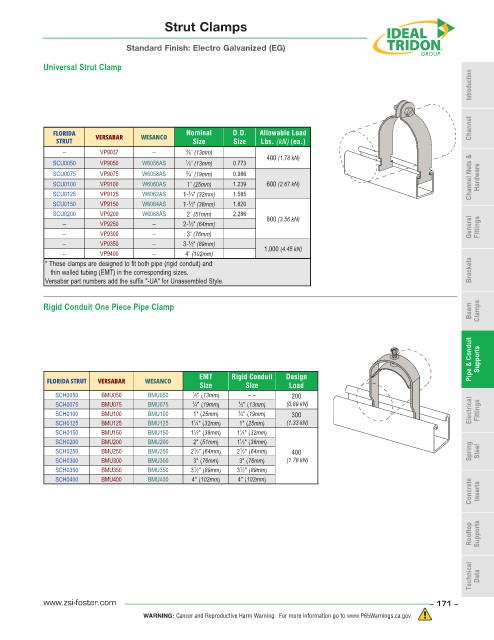

Page 171 - ZSi-Foster Product Catalog

Strut Clamps

Standard Finish: Electro Galvanized (EG)

Universal Strut Clamp
Introduction

FLORIDA VERSABAR WESANCO Nominal O.D. Allowable Load Channel
STRUT Size Size Lbs. (kN) (ea.)
-- VP9037 -- 3 ⁄8" (13mm)
400 (1.78 kN)
SCU0050 VP9050 W6056AS 1 ⁄2" (13mm) 0.773
SCU0075 VP9075 W6058AS 3 ⁄4" (19mm) 0.986 Channel Nuts & Hardware
SCU0100 VP9100 W6060AS 1" (25mm) 1.239 600 (2.67 kN)
1
SCU0125 VP9125 W6062AS 1- ⁄4" (32mm) 1.585
1
SCU0150 VP9150 W6064AS 1- ⁄2" (38mm) 1.820
SCU0200 VP9200 W6068AS 2" (51mm) 2.286
1
-- VP9250 -- 2- ⁄2" (64mm) 800 (3.56 kN) General Fittings
-- VP9300 -- 3" (76mm)
-- VP9350 -- 3- ⁄2" (89mm)
1
-- VP9400 -- 4" (102mm) 1,000 (4.45 kN)
* These clamps are designed to fit both pipe (rigid conduit) and
thin walled tubing (EMT) in the corresponding sizes. Brackets
Versabar part numbers add the suffix "-UA" for Unassembled Style.

Beam Clamps
Rigid Conduit One Piece Pipe Clamp

Pipe & Conduit Supports

EMT Rigid Conduit Design
FLORIDA STRUT VERSABAR WESANCO
Size Size Load
SCH0050 BMU050 BMU050 1 ⁄2" (13mm) – – 200
SCH0075 BMU075 BMU075 3 ⁄4" (19mm) 1 ⁄2" (13mm) (0.89 kN)
SCH0100 BMU100 BMU100 1" (25mm) 3 ⁄4" (19mm) 300 Electrical Fittings
1
SCH0125 BMU125 BMU125 1 ⁄4" (32mm) 1" (25mm) (1.33 kN)
1
1
SCH0150 BMU150 BMU150 1 ⁄2" (38mm) 1 ⁄4" (32mm)
SCH0200 BMU200 BMU200 2" (51mm) 1 ⁄2" (38mm)
1
SCH0250 BMU250 BMU250 2 ⁄2" (64mm) 2 ⁄2" (64mm) 400 Spring Steel
1
1
SCH0300 BMU300 BMU300 3" (76mm) 3" (76mm) (1.78 kN)
SCH0350 BMU350 BMU350 3 ⁄2" (89mm) 3 ⁄2" (89mm)
1
1
SCH0400 BMU400 BMU400 4" (102mm) 4" (102mm)
