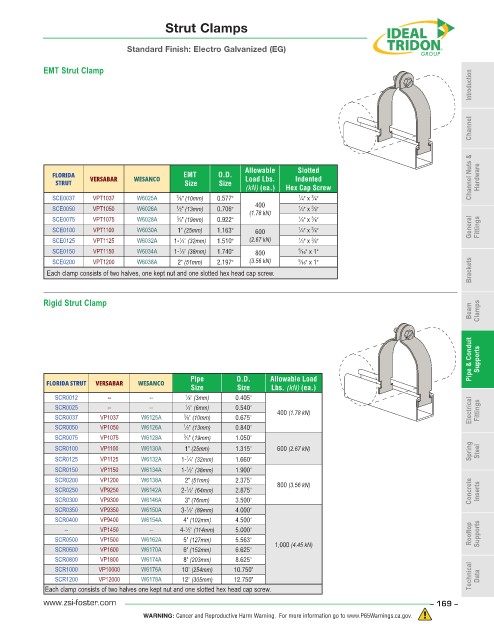

Page 169 - ZSi-Foster Product Catalog

Strut Clamps

Standard Finish: Electro Galvanized (EG)

EMT Strut Clamp
Introduction

Channel

Allowable Slotted
FLORIDA VERSABAR WESANCO EMT O.D. Load Lbs. Indented Channel Nuts & Hardware
STRUT Size Size
(kN) (ea.) Hex Cap Screw
3
SCE0037 VPT1037 W6025A 3 ⁄8" (10mm) 0.577" 1 ⁄4" x ⁄4"
3
SCE0050 VPT1050 W6026A 1 ⁄2" (13mm) 0.706" 400 1 ⁄4" x ⁄4"
(1.78 kN)
3
SCE0075 VPT1075 W6028A 3 ⁄4" (19mm) 0.922" 1 ⁄4" x ⁄4"
3
SCE0100 VPT1100 W6030A 1" (25mm) 1.163" 600 1 ⁄4" x ⁄4" General Fittings
1
SCE0125 VPT1125 W6032A 1- ⁄4" (32mm) 1.510" (2.67 kN) 1 ⁄4" x ⁄4"
3
SCE0150 VPT1150 W6034A 1- ⁄2" (38mm) 1.740" 800 5 ⁄16" x 1"
1
SCE0200 VPT1200 W6038A 2" (51mm) 2.197" (3.56 kN) 5 ⁄16" x 1"
Each clamp consists of two halves, one kept nut and one slotted hex head cap screw. Brackets
Rigid Strut Clamp
Beam Clamps

Pipe & Conduit Supports

Pipe O.D. Allowable Load
FLORIDA STRUT VERSABAR WESANCO
Size Size Lbs. (kN) (ea.)
SCR0012 -- -- 1 ⁄8" (3mm) 0.405"
SCR0025 -- -- 1 ⁄4" (6mm) 0.540" Electrical
400 (1.78 kN) Fittings
SCR0037 VP1037 W6125A 3 ⁄8" (10mm) 0.675"
SCR0050 VP1050 W6126A 1 ⁄2" (13mm) 0.840"
SCR0075 VP1075 W6128A 3 ⁄4" (19mm) 1.050"
SCR0100 VP1100 W6130A 1" (25mm) 1.315" 600 (2.67 kN) Spring Steel
1
SCR0125 VP1125 W6132A 1- ⁄4" (32mm) 1.660"
1
SCR0150 VP1150 W6134A 1- ⁄2" (38mm) 1.900"
SCR0200 VP1200 W6138A 2" (51mm) 2.375"
800 (3.56 kN)
1
SCR0250 VP9250 W6142A 2- ⁄2" (64mm) 2.875" Concrete Inserts
SCR0300 VP9300 W6146A 3" (76mm) 3.500"
SCR0350 VP9350 W6150A 3- ⁄2" (89mm) 4.000"
1
SCR0400 VP9400 W6154A 4" (102mm) 4.500"
-- VP1450 -- 4- ⁄2" (114mm) 5.000" Rooftop Supports
1
SCR0500 VP1500 W6162A 5" (127mm) 5.563"
SCR0600 VP1600 W6170A 6" (152mm) 6.625" 1,000 (4.45 kN)
SCR0800 VP1800 W6174A 8" (203mm) 8.625"
SCR1000 VP10000 W6176A 10" (254mm) 10.750"
SCR1200 VP12000 W6178A 12" (305mm) 12.750" Technical Data
Each clamp consists of two halves one kept nut and one slotted hex head cap screw.
