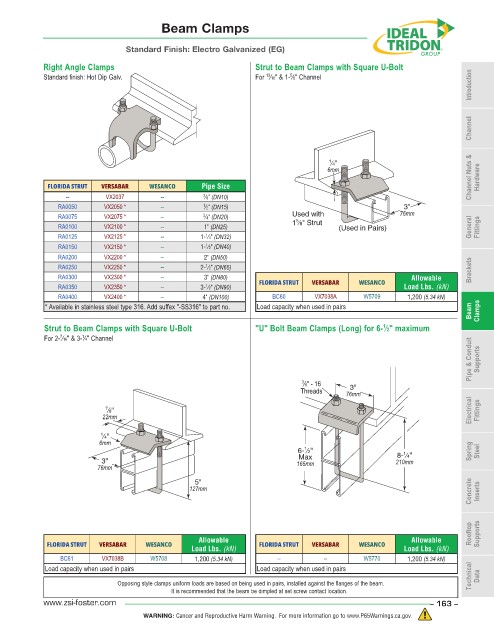

Page 163 - ZSi-Foster Product Catalog

Beam Clamps

Standard Finish: Electro Galvanized (EG)

Right Angle Clamps Strut to Beam Clamps with Square U-Bolt
Introduction
Standard finish: Hot Dip Galv. For ⁄16" & 1- ⁄8" Channel
5
13

Channel

1 ⁄4"
6mm
FLORIDA STRUT VERSABAR WESANCO Pipe Size Channel Nuts & Hardware
-- VX2037 -- 3 ⁄8" (DN10)
RA0050 VX2050 * -- 1 ⁄2" (DN15) 3"
RA0075 VX2075 * -- 3 ⁄4" (DN20) Used with 76mm
1 ⁄8" Strut
5
RA0100 VX2100 * -- 1" (DN25) (Used in Pairs) General Fittings
1
RA0125 VX2125 * -- 1- ⁄4" (DN32)
1
RA0150 VX2150 * -- 1- ⁄2" (DN40)
RA0200 VX2200 * -- 2" (DN50)
RA0250 VX2250 * -- 2- ⁄2" (DN65) Brackets
1
RA0300 VX2300 * -- 3" (DN80) FLORIDA STRUT VERSABAR WESANCO Allowable
1
RA0350 VX2350 * -- 3- ⁄2" (DN90) Load Lbs. (kN)
RA0400 VX2400 * -- 4" (DN100) BC60 VX7038A W5709 1,200 (5.34 kN)
Beam Clamps
* Available in stainless steel type 316. Add suffex "-SS316" to part no. Load capacity when used in pairs
1
Strut to Beam Clamps with Square U-Bolt "U" Bolt Beam Clamps (Long) for 6- ⁄2" maximum
For 2- ⁄16" & 3- ⁄4" Channel
1
7
Pipe & Conduit Supports

3 ⁄8" - 16
3"
Threads 76mm
7 ⁄8" Electrical Fittings
22mm

1 ⁄4"
6mm
1
6- ⁄2" 1 Spring Steel
Max 8- ⁄4"
3" 165mm 210mm
76mm
Concrete Inserts
5"
127mm

Rooftop Supports

Allowable Allowable
FLORIDA STRUT VERSABAR WESANCO FLORIDA STRUT VERSABAR WESANCO
Load Lbs. (kN) Load Lbs. (kN)
BC61 VX7038B W5708 1,200 (5.34 kN) -- -- W5770 1,200 (5.34 kN)
Load capacity when used in pairs Load capacity when used in pairs Technical

Opposing style clamps uniform loads are based on being used in pairs, installed against the flanges of the beam. Data
It is recommended that the beam be dimpled at set screw contact location.
www.zsi-foster.com – 163 –
