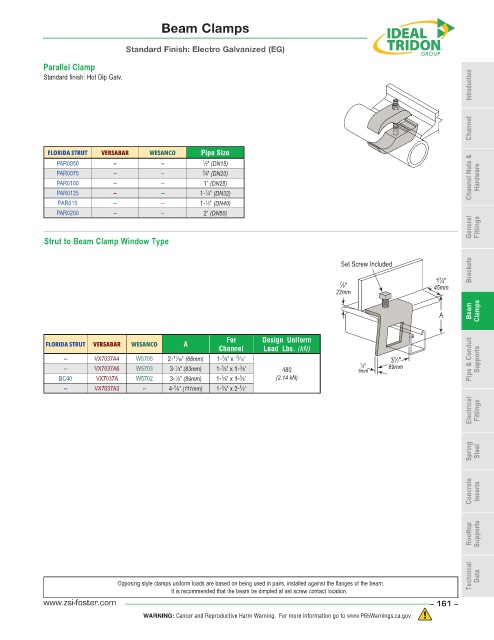

Page 161 - ZSi-Foster Product Catalog

Beam Clamps

Standard Finish: Electro Galvanized (EG)

Parallel Clamp
Introduction
Standard finish: Hot Dip Galv.

Channel

FLORIDA STRUT VERSABAR WESANCO Pipe Size
PAR0050 -- -- 1 ⁄2" (DN15)
PAR0075 -- -- 3 ⁄4" (DN20) Channel Nuts & Hardware
PAR0100 -- -- 1" (DN25)
1
PAR0125 -- -- 1- ⁄4" (DN32)
1
PAR015 -- -- 1- ⁄2" (DN40)
PAR0200 -- -- 2" (DN50)
General Fittings
Strut to Beam Clamp Window Type

Set Screw Included Brackets

3
1 ⁄4"
7 ⁄8" 45mm
22mm
Beam Clamps
A

For Design Uniform
FLORIDA STRUT VERSABAR WESANCO A
Channel Load Lbs. (kN)
5
1
13
11
-- VX7037A4 W5705 2- ⁄16" (68mm) 1- ⁄8" x ⁄16" 3 ⁄2" Pipe & Conduit Supports
1 ⁄4"
1
5
-- VX7037A6 W5703 3- ⁄4" (83mm) 1- ⁄8" x 1- ⁄8" 480 6mm 89mm
3
5
5
1
BC40 VX7037A W5702 3- ⁄2" (89mm) 1- ⁄8" x 1- ⁄8" (2.14 kN)
1
-- VX7037A3 -- 4- ⁄8" (111mm) 1- ⁄8" x 2- ⁄2"
5
3
Electrical Fittings
Spring Steel
Concrete Inserts

Rooftop Supports

Technical Data

Opposing style clamps uniform loads are based on being used in pairs, installed against the flanges of the beam.
It is recommended that the beam be dimpled at set screw contact location.
www.zsi-foster.com – 161 –

WARNING: Cancer and Reproductive Harm Warning. For more information go to www.P65Warnings.ca.gov.
