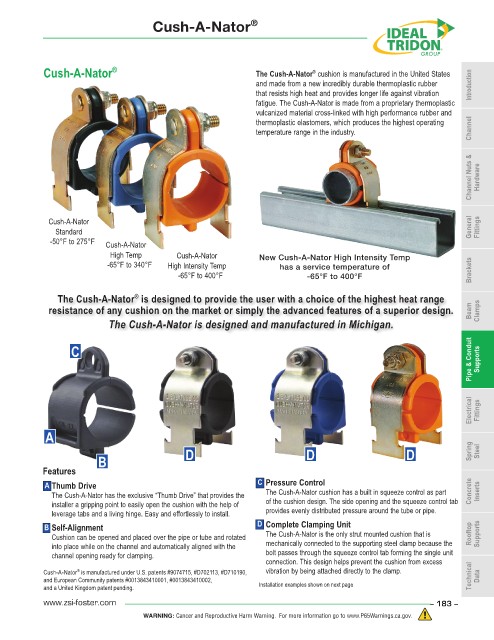

Page 183 - ZSi-Foster Product Catalog

Cush-A-Nator ®

Cush-A-Nator ® The Cush-A-Nator cushion is manufactured in the United States
®
and made from a new incredibly durable thermoplastic rubber Introduction
that resists high heat and provides longer life against vibration
fatigue. The Cush-A-Nator is made from a proprietary thermoplastic
vulcanized material cross-linked with high performance rubber and
thermoplastic elastomers, which produces the highest operating
temperature range in the industry. Channel

Channel Nuts & Hardware

Cush-A-Nator
Standard General Fittings
-50°F to 275°F Cush-A-Nator
High Temp Cush-A-Nator New Cush-A-Nator High Intensity Temp
-65°F to 340°F High Intensity Temp has a service temperature of
-65°F to 400°F -65°F to 400°F Brackets

The Cush-A-Nator is designed to provide the user with a choice of the highest heat range
®
resistance of any cushion on the market or simply the advanced features of a superior design. Beam Clamps
The Cush-A-Nator is designed and manufactured in Michigan.

Pipe & Conduit Supports
C

Electrical Fittings

A

B D D D Spring Steel
Features
C
A
Thumb Drive Pressure Control
The Cush-A-Nator has the exclusive “Thumb Drive” that provides the The Cush-A-Nator cushion has a built in squeeze control as part Concrete Inserts
installer a gripping point to easily open the cushion with the help of of the cushion design. The side opening and the squeeze control tab
leverage tabs and a living hinge. Easy and effortlessly to install. provides evenly distributed pressure around the tube or pipe.
D
B
Self-Alignment Complete Clamping Unit
Cushion can be opened and placed over the pipe or tube and rotated The Cush-A-Nator is the only strut mounted cushion that is Rooftop Supports
into place while on the channel and automatically aligned with the mechanically connected to the supporting steel clamp because the
channel opening ready for clamping. bolt passes through the squeeze control tab forming the single unit
connection. This design helps prevent the cushion from excess
® vibration by being attached directly to the clamp.
Cush-A-Nator is manufactured under U.S. patents #9074715, #D702113, #D710190, Technical
and European Community patents #0013843410001, #0013843410002, Data
and a United Kingdom patent pending. Installation examples shown on next page
