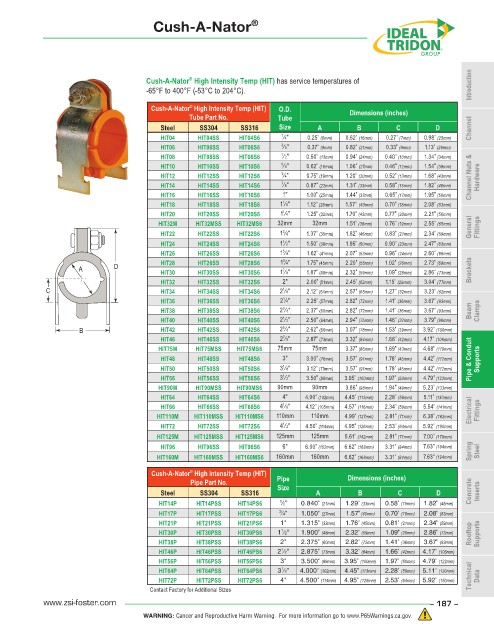

Cush-A-Nator ®

®
Cush-A-Nator High Intensity Temp (HIT) has service temperatures of Introduction
-65°F to 400°F (-53°C to 204°C).
Cush-A-Nator High Intensity Temp (HIT) O.D. Dimensions (inches)
®
Tube Part No. Tube
Steel SS304 SS316 Size A B C D Channel
HIT04 HIT04SS HIT04S6 1 ⁄4" 0.25" (6mm) 0.62" (16mm) 0.27" (7mm) 0.98" (25mm)
HIT06 HIT06SS HIT06S6 3 ⁄ 8" 0.37" (9mm) 0.82" (21mm) 0.33" (8mm) 1.13" (29mm)
HIT08 HIT08SS HIT08S6 1 ⁄ 2" 0.50" (13mm) 0.94" (24mm) 0.40" (10mm) 1.34" (34mm)
HIT10 HIT10SS HIT10S6 5 ⁄ 8" 0.62" (16mm) 1.06" (27mm) 0.46" (12mm) 1.54" (39mm)
HIT12 HIT12SS HIT12S6 3 ⁄4" 0.75" (19mm) 1.20" (30mm) 0.52" (13mm) 1.68" (43mm) Channel Nuts & Hardware
HIT14 HIT14SS HIT14S6 7 ⁄ 8" 0.87" (22mm) 1.31" (33mm) 0.58" (15mm) 1.82" (46mm)
HIT16 HIT16SS HIT16S6 1" 1.00" (25mm) 1.44" (37mm) 0.65" (17mm) 1.95" (50mm)
1
HIT18 HIT18SS HIT18S6 1 ⁄ 8" 1.12" (28mm) 1.57" (40mm) 0.70" (18mm) 2.08" (53mm)
1
HIT20 HIT20SS HIT20S6 1 ⁄4" 1.25" (32mm) 1.70" (43mm) 0.77" (20mm) 2.21" (56mm)
HIT32M HIT32MSS HIT32MS6 32mm 32mm 1.51" (38mm) 0.76" (19mm) 2.55" (65mm) General Fittings
3
HIT22 HIT22SS HIT22S6 1 ⁄ 8" 1.37" (35mm) 1.82" (46mm) 0.83" (21mm) 2.34" (59mm)
1
HIT24 HIT24SS HIT24S6 1 ⁄ 2" 1.50" (38mm) 1.95" (50mm) 0.90" (23mm) 2.47" (63mm)
5
HIT26 HIT26SS HIT26S6 1 ⁄ 8" 1.62" (41mm) 2.07" (53mm) 0.96" (24mm) 2.60" (66mm)
3
A D HIT28 HIT28SS HIT28S6 1 ⁄4" 1.75" (45mm) 2.20" (56mm) 1.02" (26mm) 2.73" (69mm) Brackets
7
HIT30 HIT30SS HIT30S6 1 ⁄ 8" 1.87" (48mm) 2.32" (59mm) 1.09" (28mm) 2.86" (73mm)
HIT32 HIT32SS HIT32S6 2" 2.00" (51mm) 2.45" (62mm) 1.15" (29mm) 3.04" (77mm)
C HIT34 HIT34SS HIT34S6 2 ⁄ 8" 2.12" (54mm) 2.57" (65mm) 1.27" (32mm) 3.23" (82mm)
1
1
HIT36 HIT36SS HIT36S6 2 ⁄4" 2.25" (57mm) 2.82" (72mm) 1.41" (36mm) 3.67" (93mm)
3
HIT38 HIT38SS HIT38S6 2 ⁄ 8" 2.37" (60mm) 2.82" (72mm) 1.41" (36mm) 3.67" (93mm) Beam Clamps
1
HIT40 HIT40SS HIT40S6 2 ⁄ 2" 2.50" (64mm) 2.94" (75mm) 1.46" (37mm) 3.79" (96mm)
5
B HIT42 HIT42SS HIT42S6 2 ⁄ 8" 2.62" (66mm) 3.07" (78mm) 1.53" (39mm) 3.92" (100mm)
7
HIT46 HIT46SS HIT46S6 2 ⁄ 8" 2.87" (73mm) 3.32" (84mm) 1.66" (42mm) 4.17" (106mm)
HIT75M HIT75MSS HIT75MS6 75mm 75mm 3.37" (86mm) 1.69" (43mm) 4.68" (119mm)
HIT48 HIT48SS HIT48S6 3" 3.00" (76mm) 3.57" (91mm) 1.78" (45mm) 4.42" (112mm) Pipe & Conduit Supports
1
HIT50 HIT50SS HIT50S6 3 ⁄ 8" 3.12" (79mm) 3.57" (91mm) 1.78" (45mm) 4.42" (112mm)
1
HIT56 HIT56SS HIT56S6 3 ⁄ 2" 3.50" (89mm) 3.95" (100mm) 1.97" (50mm) 4.79" (122mm)
HIT90M HIT90MSS HIT90MS6 90mm 90mm 3.86" (98mm) 1.94" (49mm) 5.23" (133mm)
HIT64 HIT64SS HIT64S6 4" 4.00" (102mm) 4.45" (113mm) 2.28" (58mm) 5.11" (130mm)
1
HIT66 HIT66SS HIT66S6 4 ⁄ 8" 4.12" (105mm) 4.57" (116mm) 2.34" (59mm) 5.54" (141mm) Electrical Fittings
HIT110M HIT110MSS HIT110MS6 110mm 110mm 4.99" (127mm) 2.81" (71mm) 6.38" (162mm)
1
HIT72 HIT72SS HIT72S6 4 ⁄ 2" 4.50" (114mm) 4.95" (126mm) 2.53" (64mm) 5.92" (150mm)
HIT125M HIT125MSS HIT125MS6 125mm 125mm 5.61" (142mm) 2.81" (71mm) 7.00" (178mm)
HIT96 HIT96SS HIT96S6 6" 6.00" (152mm) 6.62" (168mm) 3.31" (84mm) 7.63" (194mm) Spring Steel
HIT160M HIT160MSS HIT160MS6 160mm 160mm 6.62" (168mm) 3.31" (84mm) 7.63" (194mm)
®
Cush-A-Nator High Intensity Temp (HIT) Dimensions (inches)
Pipe Part No. Pipe
Size
Steel SS304 SS316 A B C D Concrete Inserts
HIT14P HIT14PSS HIT14PS6 1 ⁄2" 0.840" (21mm) 1.29" (33mm) 0.58" (15mm) 1.82" (46mm)
HIT17P HIT17PSS HIT17PS6 3 ⁄4" 1.050" (27mm) 1.57" (40mm) 0.70" (18mm) 2.08" (53mm)
HIT21P HIT21PSS HIT21PS6 1" 1.315" (33mm) 1.76" (45mm) 0.81" (21mm) 2.34" (59mm)
1
HIT30P HIT30PSS HIT30PS6 1 ⁄2" 1.900" (48mm) 2.32" (59mm) 1.09" (28mm) 2.86" (73mm) Rooftop Supports
HIT38P HIT38PSS HIT38PS6 2" 2.375" (60mm) 2.82" (72mm) 1.41" (36mm) 3.67" (93mm)
1
HIT46P HIT46PSS HIT46PS6 2 ⁄2" 2.875" (73mm) 3.32" (84mm) 1.66" (42mm) 4.17" (106mm)
HIT56P HIT56PSS HIT56PS6 3" 3.500" (89mm) 3.95" (100mm) 1.97" (50mm) 4.79" (122mm)
1
HIT64P HIT64PSS HIT64PS6 3 ⁄2" 4.000" (102mm) 4.45" (113mm) 2.28" (58mm) 5.11" (130mm) Technical
HIT72P HIT72PSS HIT72PS6 4" 4.500" (114mm) 4.95" (126mm) 2.53" (64mm) 5.92" (150mm) Data
Contact Factory for Additional Sizes
