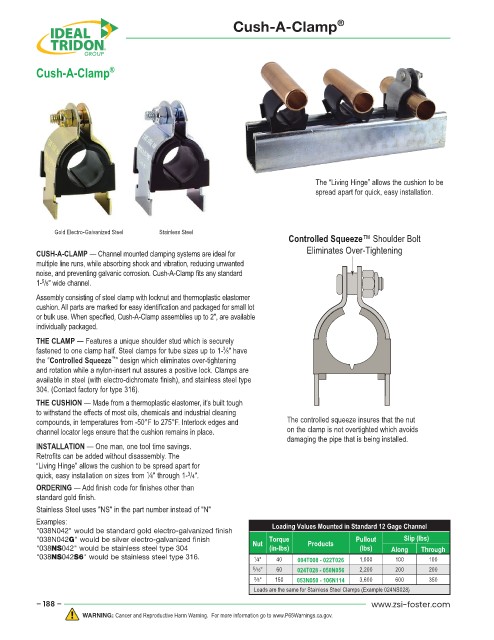

Page 188 - ZSi-Foster Product Catalog

Cush-A-Clamp ®

Cush-A-Clamp ®

The “Living Hinge” allows the cushion to be
spread apart for quick, easy installation.

Gold Electro-Galvanized Steel Stainless Steel
Controlled Squeeze™ Shoulder Bolt
Eliminates Over-Tightening
CUSH-A-CLAMP — Channel mounted clamping systems are ideal for
multiple line runs, while absorbing shock and vibration, reducing unwanted
noise, and preventing galvanic corrosion. Cush-A-Clamp fits any standard
5
1- /8" wide channel.
Assembly consisting of steel clamp with locknut and thermoplastic elastomer
cushion. All parts are marked for easy identification and packaged for small lot
or bulk use. When specified, Cush-A-Clamp assemblies up to 2", are available
individually packaged.
THE CLAMP — Features a unique shoulder stud which is securely
3
fastened to one clamp half. Steel clamps for tube sizes up to 1- ⁄8" have
the “Controlled Squeeze ” design which eliminates over-tightening
™
and rotation while a nylon-insert nut assures a positive lock. Clamps are
available in steel (with electro-dichromate finish), and stainless steel type
304. (Contact factory for type 316).
THE CUSHION — Made from a thermoplastic elastomer, it’s built tough
to withstand the effects of most oils, chemicals and industrial cleaning
compounds, in temperatures from -50°F to 275°F. Interlock edges and The controlled squeeze insures that the nut
channel locator legs ensure that the cushion remains in place. on the clamp is not overtighted which avoids
damaging the pipe that is being installed.
INSTALLATION — One man, one tool time savings.
Retrofits can be added without disassembly. The
“Living Hinge” allows the cushion to be spread apart for
3
1
quick, easy installation on sizes from ⁄4" through 1- /4".
ORDERING — Add finish code for finishes other than
standard gold finish.
Stainless Steel uses "NS" in the part number instead of "N"
Examples:
"038N042" would be standard gold electro-galvanized finish Loading Values Mounted in Standard 12 Gage Channel
"038N042G" would be silver electro-galvanized finish Torque Pullout Slip (lbs)
"038NS042" would be stainless steel type 304 Nut (in-lbs) Products (lbs) Along Through
"038NS042S6" would be stainless steel type 316. 1 ⁄4" 40 004T008 - 022T026 1,000 100 100
5 ⁄16" 60 024T028 - 050N056 2,200 200 200
3 ⁄8" 150 053N050 - 106N114 3,600 600 350
Loads are the same for Stainless Steel Clamps (Example 024NS028)
