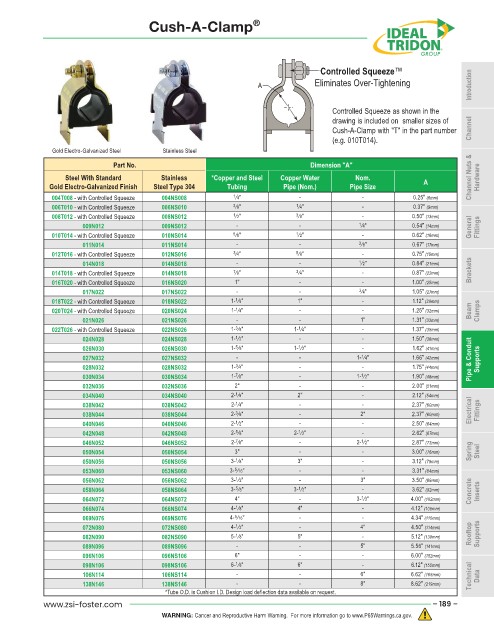

Page 189 - ZSi-Foster Product Catalog

Cush-A-Clamp ®

Controlled Squeeze™
A Eliminates Over-Tightening Introduction

Controlled Squeeze as shown in the
drawing is included on smaller sizes of
Cush-A-Clamp with "T" in the part number Channel
(e.g. 010T014).
Gold Electro-Galvanized Steel Stainless Steel
Part No. Dimension "A"
Steel With Standard Stainless *Copper and Steel Copper Water Nom. A Channel Nuts & Hardware
Gold Electro-Galvanized Finish Steel Type 304 Tubing Pipe (Nom.) Pipe Size
004T008 - with Controlled Squeeze 004NS008 1 ⁄4" - - 0.25" (6mm)
006T010 - with Controlled Squeeze 006NS010 3 ⁄8" 1 ⁄4" - 0.37" (9mm)
008T012 - with Controlled Squeeze 008NS012 1 ⁄2" 3 ⁄8" - 0.50" (13mm)
009N012 009NS012 - - 1 ⁄4" 0.54" (14mm) General Fittings
010T014 - with Controlled Squeeze 010NS014 5 ⁄8" 1 ⁄2" - 0.62" (16mm)
011N014 011NS014 - - 3 ⁄8" 0.67" (17mm)
012T016 - with Controlled Squeeze 012NS016 3 ⁄4" 5 ⁄8" - 0.75" (19mm)
014N018 014NS018 - - 1 ⁄2" 0.84" (21mm)
014T018 - with Controlled Squeeze 014NS018 7 ⁄8" 3 ⁄4" - 0.87" (22mm) Brackets
016T020 - with Controlled Squeeze 016NS020 1" - - 1.00" (25mm)
017N022 017NS022 - - 3 ⁄4" 1.05" (27mm)
018T022 - with Controlled Squeeze 018NS022 1- ⁄8" 1" - 1.12" (28mm)
1
1
020T024 - with Controlled Squeeze 020NS024 1- ⁄4" - - 1.25" (32mm) Beam Clamps
021N026 021NS026 - - 1" 1.31" (33mm)
3
022T026 - with Controlled Squeeze 022NS026 1- ⁄8" 1- ⁄4" - 1.37" (35mm)
1
1
024N028 024NS028 1- ⁄2" - - 1.50" (38mm)
1
5
026N030 026NS030 1- ⁄8" 1- ⁄2" - 1.62" (41mm)
1
027N032 027NS032 - - 1- ⁄4" 1.66" (42mm) Pipe & Conduit Supports
3
028N032 028NS032 1- ⁄4" - - 1.75" (44mm)
1
7
030N034 030NS034 1- ⁄8" - 1- ⁄2" 1.90" (48mm)
032N036 032NS036 2" - - 2.00" (51mm)
1
034N040 034NS040 2- ⁄8" 2" - 2.12" (54mm)
1
038N042 038NS042 2- ⁄4" - - 2.37" (60mm)
038N044 038NS044 2- ⁄8" - 2" 2.37" (60mm) Electrical Fittings
3
1
040N046 040NS046 2- ⁄2" - - 2.50" (64mm)
1
5
042N048 042NS048 2- ⁄8" 2- ⁄2" - 2.62" (67mm)
046N052 046NS052 2- ⁄8" - 2- ⁄2" 2.87" (73mm)
1
7
050N054 050NS054 3" - - 3.00" (76mm) Spring Steel
1
050N056 050NS056 3- ⁄8" 3" - 3.12" (79mm)
053N060 053NS060 3- ⁄16" - - 3.31" (84mm)
5
1
056N062 056NS062 3- ⁄2" - 3" 3.50" (89mm)
1
5
058N064 058NS064 3- ⁄8" 3- ⁄2" - 3.62" (92mm) Concrete Inserts
064N072 064NS072 4" - 3- ⁄2" 4.00" (102mm)
1
1
066N074 066NS074 4- ⁄8" 4" - 4.12" (105mm)
5
069N076 069NS076 4- ⁄16" - - 4.34" (110mm)
072N080 072NS080 4- ⁄2" - 4" 4.50" (114mm)
1
1
082N090 082NS090 5- ⁄8" 5" - 5.12" (130mm) Rooftop Supports
089N096 089NS096 - - 5" 5.56" (141mm)
096N106 096NS106 6" - - 6.00" (152mm)
1
098N106 098NS106 6- ⁄8" 6" - 6.12" (155mm)
106N114 106NS114 - - 6" 6.62" (168mm) Technical Data
138N146 138NS146 - - 8" 8.62" (219mm)
*Tube O.D. is Cushion I.D. Design load deflection data available on request.
