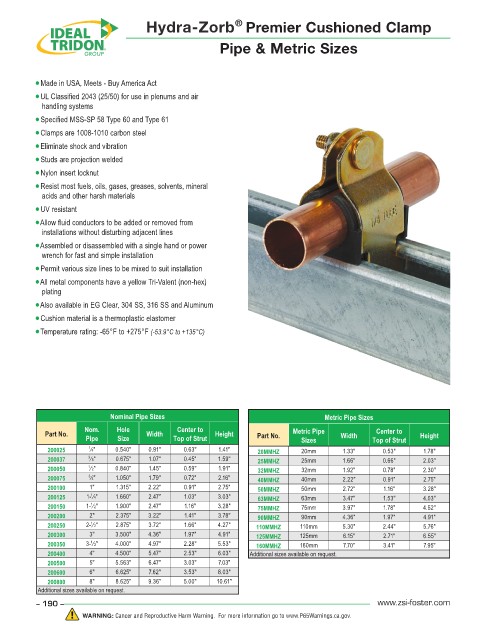

Hydra-Zorb Premier Cushioned Clamp
Pipe & Metric Sizes

• • Made in USA, Meets - Buy America Act
• • UL Classified 2043 (25/50) for use in plenums and air
handling systems
• • Specified MSS-SP 58 Type 60 and Type 61
• • Clamps are 1008-1010 carbon steel
• • Eliminate shock and vibration
• • Studs are projection welded
• • Nylon insert locknut
• • Resist most fuels, oils, gases, greases, solvents, mineral
acids and other harsh materials
• • UV resistant
• • Allow fluid conductors to be added or removed from
installations without disturbing adjacent lines
• • Assembled or disassembled with a single hand or power
wrench for fast and simple installation
• • Permit various size lines to be mixed to suit installation
• • All metal components have a yellow Tri-Valent (non-hex)
plating
• • Also available in EG Clear, 304 SS, 316 SS and Aluminum
• • Cushion material is a thermoplastic elastomer

• • Temperature rating: -65°F to +275°F (-53.9°C to +135°C)

Nominal Pipe Sizes Metric Pipe Sizes
Nom. Hole Center to Metric Pipe Center to
Part No. Width Height Part No. Width Height
Pipe Size Top of Strut Sizes Top of Strut
200025 1 ⁄4" 0.540" 0.91" 0.63" 1.41" 20MMHZ 20mm 1.33" 0.53" 1.78"
200037 3 ⁄8" 0.675" 1.07" 0.45" 1.59" 25MMHZ 25mm 1.66" 0.66" 2.03"
200050 1 ⁄2" 0.840" 1.45" 0.59" 1.91" 32MMHZ 32mm 1.92" 0.78" 2.30"
200075 3 ⁄4" 1.050" 1.79" 0.72" 2.16" 40MMHZ 40mm 2.22" 0.91" 2.75"
200100 1" 1.315" 2.22" 0.91" 2.75" 50MMHZ 50mm 2.72" 1.16" 3.28"
1
200125 1- ⁄4" 1.660" 2.47" 1.03" 3.03" 63MMHZ 63mm 3.47" 1.53" 4.03"
1
200150 1- ⁄2" 1.900" 2.47" 1.16" 3.28" 75MMHZ 75mm 3.97" 1.78" 4.52"
200200 2" 2.375" 3.22" 1.41" 3.78" 90MMHZ 90mm 4.36" 1.97" 4.91"
1
200250 2- ⁄2" 2.875" 3.72" 1.66" 4.27" 110MMHZ 110mm 5.30" 2.44" 5.76"
200300 3" 3.500" 4.36" 1.97" 4.91" 125MMHZ 125mm 6.15" 2.71" 6.55"
1
200350 3- ⁄2" 4.000" 4.97" 2.28" 5.53" 160MMHZ 160mm 7.70" 3.41" 7.95"
200400 4" 4.500" 5.47" 2.53" 6.03" Additional sizes available on request.
200500 5" 5.563" 6.47" 3.03" 7.03"
200600 6" 6.625" 7.62" 3.53" 8.03"
200800 8" 8.625" 9.36" 5.00" 10.61"
Additional sizes available on request.
