Cush-A-Nator ®

®

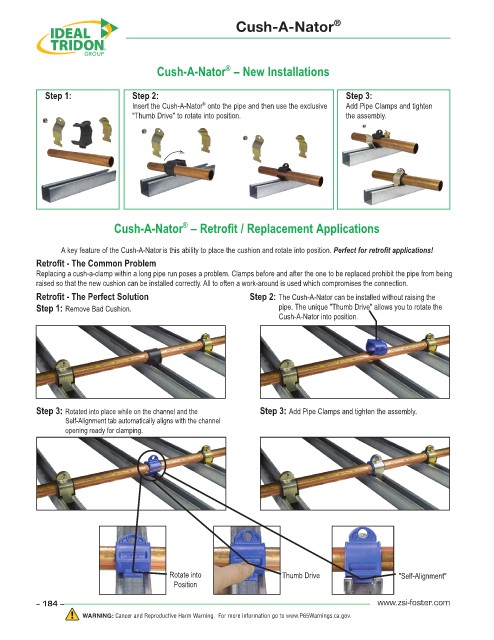

Cush-A-Nator – New Installations

Step 1: Step 2: Step 3:
®
Insert the Cush-A-Nator onto the pipe and then use the exclusive Add Pipe Clamps and tighten
"Thumb Drive" to rotate into position. the assembly.

®
Cush-A-Nator – Retrofit / Replacement Applications

A key feature of the Cush-A-Natoris this ability to place the cushion and rotate into position. Perfect for retrofit applications!
Retrofit - The Common Problem
Replacing a cush-a-clamp within a long pipe run poses a problem. Clamps before and after the one to be replaced prohibit the pipe from being
raised so that the new cushion can be installed correctly. All to often a work-around is used which compromises the connection.
Retrofit - The Perfect Solution Step 2: The Cush-A-Nator can be installed without raising the
Step 1: Remove Bad Cushion. pipe. The unique "Thumb Drive" allows you to rotate the
Cush-A-Nator into position.

Step 3: Rotated into place while on the channel and the Step 3: Add Pipe Clamps and tighten the assembly.
Self-Alignment tab automatically aligns with the channel
opening ready for clamping.

Rotate into Thumb Drive "Self-Alignment"
Position
