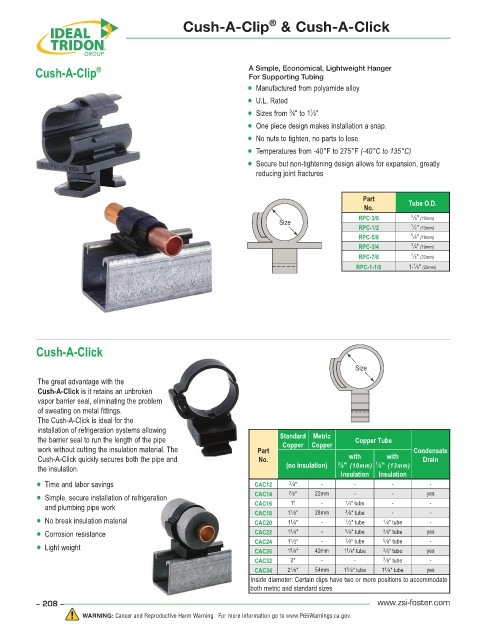

Cush-A-Clip & Cush-A-Click

Cush-A-Clip ® A Simple, Economical, Lightweight Hanger
For Supporting Tubing
• • Manufactured from polyamide alloy
• • U.L. Rated
• • Sizes from ⁄8" to 1 ⁄8"
3
1
• • One piece design makes installation a snap.
• • No nuts to tighten, no parts to lose.
• • Temperatures from -40°F to 275°F (-40°C to 135°C)
• • Secure but non-tightening design allows for expansion, greatly
reducing joint fractures

Part Tube O.D.
No.
RPC-3/8 3 ⁄8" (10mm)
Size
RPC-1/2 1 ⁄2" (13mm)
RPC-5/8 5 ⁄8" (16mm)
RPC-3/4 3 ⁄4" (19mm)
RPC-7/8 7 ⁄8" (22mm)
1
RPC-1-1/8 1- ⁄8" (29mm)

Cush-A-Click

Size
The great advantage with the
Cush-A-Click is it retains an unbroken
vapor barrier seal, eliminating the problem
of sweating on metal fittings.
The Cush-A-Click is ideal for the
installation of refrigeration systems allowing
the barrier seal to run the length of the pipe Standard Metric Copper Tube
Copper
Copper
work without cutting the insulation material. The Part Condensate
Cush-A-Click quickly secures both the pipe and No. 3 with 1 with Drain
the insulation. (no insulation) ⁄8" (10mm) ⁄2" (13mm)
Insulation Insulation
• • Time and labor savings CAC12 3 ⁄4" - - - -
• • Simple, secure installation of refrigeration CAC14 7 ⁄8" 22mm 1 - - yes
and plumbing pipe work CAC16 1" - ⁄4" tube - -
CAC18 1 ⁄8" 28mm 3 ⁄8" tube - -
1
• • No break insulation material CAC20 1 ⁄4" - 1 ⁄2" tube 1 ⁄4" tube -
1
3
• • Corrosion resistance CAC22 1 ⁄8" - 5 ⁄8" tube 3 ⁄8" tube yes
1
CAC24 1 ⁄2" - 7 ⁄8" tube 5 ⁄8" tube -
• • Light weight 5 1 3
CAC26 1 ⁄8" 42mm 1 ⁄8" tube ⁄4" tube yes
CAC32 2" - - 7 ⁄8" tube -
CAC34 2 ⁄8" 54mm 1 ⁄8" tube 1 ⁄8" tube yes
1
3
1
Inside diameter: Certain clips have two or more positions to accommodate
both metric and standard sizes
