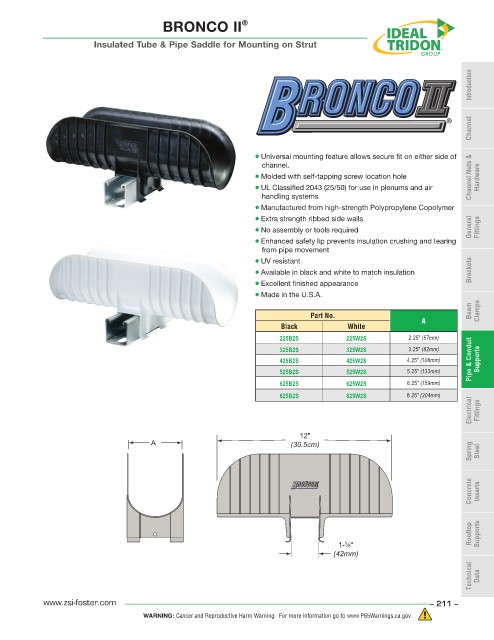

BRONCO II           ®

                        Insulated Tube & Pipe Saddle for Mounting on Strut



                                                                                                                      Introduction





                                                                                                                      Channel




                                                                • • Universal mounting feature allows secure fit on either side of
                                                                  channel.
                                                                • • Molded with self-tapping screw location hole      Channel Nuts &   Hardware
                                                                • • UL Classified 2043 (25/50) for use in plenums and air
                                                                  handling systems
                                                                • • Manufactured from high-strength Polypropylene Copolymer
                                                                • • Extra strength ribbed side walls
                                                                • • No assembly or tools required                     General   Fittings
                                                                • • Enhanced safety lip prevents insulation crushing and tearing
                                                                  from pipe movement
                                                                • • UV resistant
                                                                • • Available in black and white to match insulation  Brackets
                                                                • • Excellent finished appearance
                                                                • • Made in the U.S.A.
                                                                                                                      Beam   Clamps
                                                                              Part No.
                                                                       Black           White             A
                                                                      225B2S           225W2S         2.25" (57mm)
                                                                      325B2S           325W2S         3.25" (82mm)
                                                                      425B2S           425W2S         4.25" (108mm)   Pipe & Conduit   Supports
                                                                      525B2S           525W2S         5.25" (133mm)
                                                                      625B2S           625W2S         6.25" (159mm)
                                                                      825B2S           825W2S         8.25" (204mm)
                                                                                                                      Electrical   Fittings



                                                                           12"
                                      A                                  (30.5cm)
                                                                                                                      Spring   Steel



                                                                                                                      Concrete   Inserts




                                                                                                                      Rooftop   Supports


                                                                                      5
                                                                                     1- ⁄8"
                                                                                    (42mm)
                                                                                                                      Technical   Data
