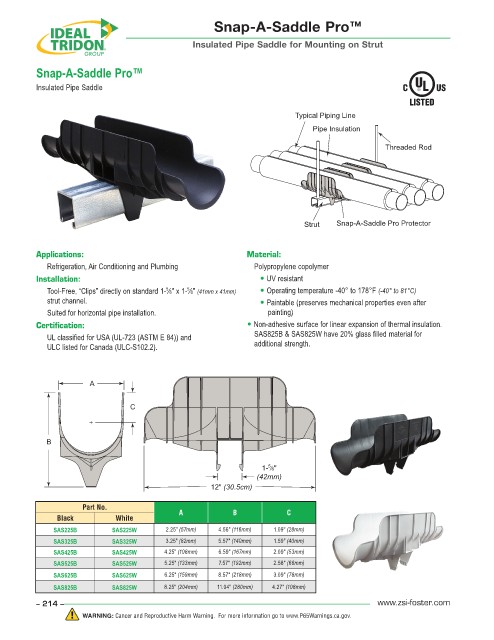

Page 214 - ZSi-Foster Product Catalog

Snap-A-Saddle Pro ™

Insulated Pipe Saddle for Mounting on Strut

Snap-A-Saddle Pro™

Insulated Pipe Saddle

Typical Piping Line
Pipe Insulation

Threaded Rod

Strut Snap-A-Saddle Pro Protector

Applications: Material:
Refrigeration, Air Conditioning and Plumbing Polypropylene copolymer
Installation: • UV resistant
5
Tool-Free, “Clips” directly on standard 1- ⁄8" x 1- ⁄8" (41mm x 41mm) • Operating temperature -40° to 178°F (-40° to 81°C)
5
strut channel. • Paintable (preserves mechanical properties even after
Suited for horizontal pipe installation. painting)
Certification: • Non-adhesive surface for linear expansion of thermal insulation.
UL classified for USA (UL-723 (ASTM E 84)) and SAS825B & SAS825W have 20% glass filled material for
ULC listed for Canada (ULC-S102.2). additional strength.

A

C

B

5
1- ⁄8"
(42mm)
12" (30.5cm)

Part No.
Black White A B C
SAS225B SAS225W 2.25" (57mm) 4.56" (116mm) 1.09" (28mm)
SAS325B SAS325W 3.25" (82mm) 5.57" (140mm) 1.59" (40mm)
SAS425B SAS425W 4.25" (108mm) 6.59" (167mm) 2.09" (53mm)
SAS525B SAS525W 5.25" (133mm) 7.57" (192mm) 2.58" (66mm)
SAS625B SAS625W 6.25" (159mm) 8.57" (218mm) 3.09" (78mm)
SAS825B SAS825W 8.25" (204mm) 11.04" (280mm) 4.27" (108mm)
