Page 219 - ZSi-Foster Product Catalog

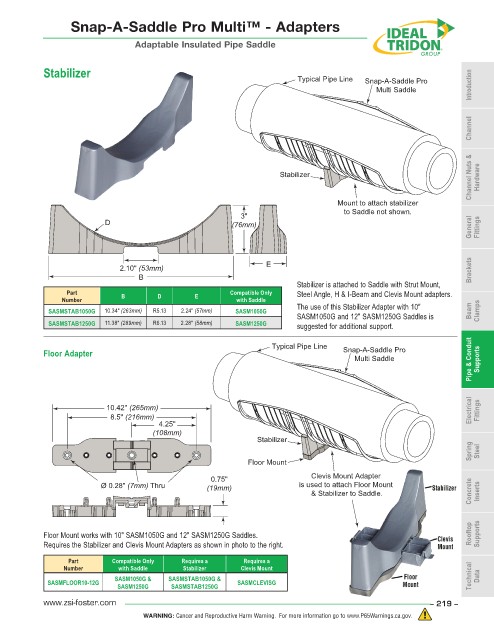

Snap-A-Saddle Pro Multi™ - Adapters

Adaptable Insulated Pipe Saddle

Stabilizer
Typical Pipe Line Snap-A-Saddle Pro
Multi Saddle Introduction

Channel

Channel Nuts & Hardware
Stabilizer

Mount to attach stabilizer
to Saddle not shown.
3"
D (76mm) General Fittings

E
2.10" (53mm) Brackets
B
Stabilizer is attached to Saddle with Strut Mount,
Part B D E Compatible Only Steel Angle, H & I-Beam and Clevis Mount adapters.
Number with Saddle
The use of this Stabilizer Adapter with 10"
SASMSTAB1050G 10.34" (263mm) R5.13 2.24" (57mm) SASM1050G Beam Clamps
SASM1050G and 12" SASM1250G Saddles is
SASMSTAB1250G 11.38" (289mm) R6.13 2.28" (58mm) SASM1250G suggested for additional support.

Typical Pipe Line
Floor Adapter Snap-A-Saddle Pro
Multi Saddle Pipe & Conduit Supports

10.42" (265mm) Electrical Fittings
8.5" (216mm)
4.25"
(108mm)
Stabilizer
Spring Steel

Floor Mount

0.75" Clevis Mount Adapter
Ø 0.28" (7mm) Thru (19mm) is used to attach Floor Mount
& Stabilizer to Saddle. Concrete Inserts

Floor Mount works with 10" SASM1050G and 12" SASM1250G Saddles. Rooftop Supports
Requires the Stabilizer and Clevis Mount Adapters as shown in photo to the right.
Part Compatible Only Requires a Requires a
Number with Saddle Stabilizer Clevis Mount
SASM1050G & SASMSTAB1050G & Technical Data
SASMFLOOR10-12G SASMCLEVISG
SASM1250G SASMSTAB1250G
www.zsi-foster.com – 219 –
