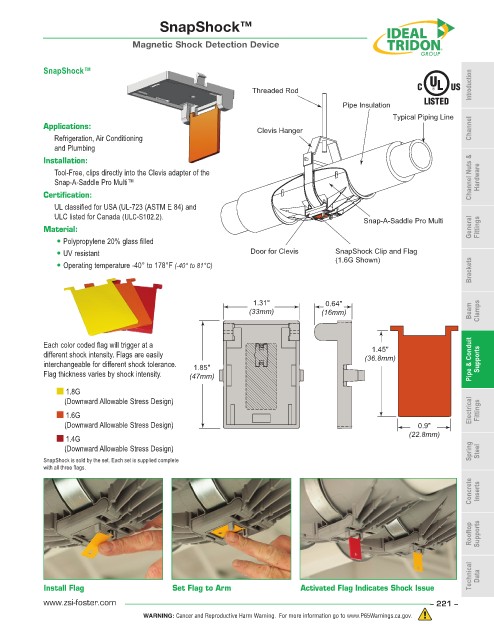

SnapShock ™

Magnetic Shock Detection Device

SnapShock™
Introduction
Threaded Rod

Pipe Insulation
Typical Piping Line
Applications: Clevis Hanger Channel
Refrigeration, Air Conditioning
and Plumbing
Installation:
Tool-Free, clips directly into the Clevis adapter of the
Snap-A-Saddle Pro Multi™ Channel Nuts & Hardware
Certification:
UL classified for USA (UL-723 (ASTM E 84) and
ULC listed for Canada (ULC-S102.2). Snap-A-Saddle Pro Multi
Material: General Fittings
• Polypropylene 20% glass filled
• UV resistant Door for Clevis SnapShock Clip and Flag
(1.6G Shown)
Brackets
• Operating temperature -40° to 178°F (-40° to 81°C)

1.31" 0.64"
(33mm) (16mm) Beam Clamps

Each color coded flag will trigger at a 1.45"
different shock intensity. Flags are easily (36.8mm) Pipe & Conduit
interchangeable for different shock tolerance. 1.85" Supports
Flag thickness varies by shock intensity. (47mm)

■ 1.8G
(Downward Allowable Stress Design)

■ 1.6G Electrical Fittings
(Downward Allowable Stress Design) 0.9"
■ 1.4G (22.8mm)
(Downward Allowable Stress Design) Spring Steel
SnapShock is sold by the set. Each set is supplied complete
with all three flags.
Concrete Inserts

Rooftop Supports

Technical Data

Install Flag Set Flag to Arm Activated Flag Indicates Shock Issue
