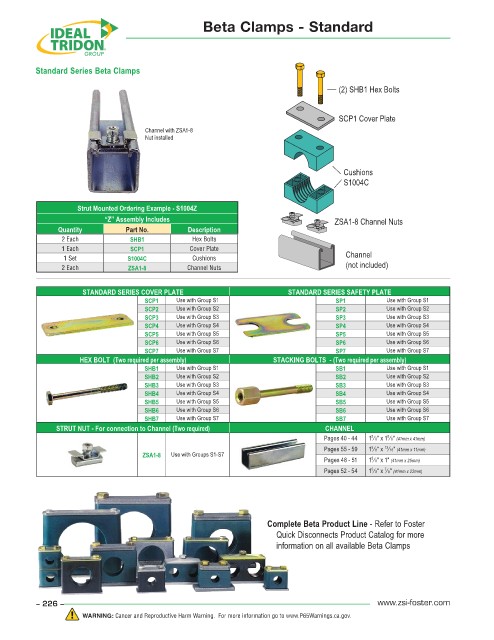

Beta Clamps - Standard

Standard Series Beta Clamps

(2) SHB1 Hex Bolts

SCP1 Cover Plate

Channel with ZSA1-8
Nut installed

Cushions
S1004C

Strut Mounted Ordering Example - S1004Z
“Z” Assembly Includes ZSA1-8 Channel Nuts
Quantity Part No. Description
2 Each SHB1 Hex Bolts
1 Each SCP1 Cover Plate
1 Set S1004C Cushions Channel
2 Each ZSA1-8 Channel Nuts (not included)

STANDARD SERIES COVER PLATE STANDARD SERIES SAFETY PLATE
SCP1 Use with Group S1 SP1 Use with Group S1
SCP2 Use with Group S2 SP2 Use with Group S2
SCP3 Use with Group S3 SP3 Use with Group S3
SCP4 Use with Group S4 SP4 Use with Group S4
SCP5 Use with Group S5 SP5 Use with Group S5
SCP6 Use with Group S6 SP6 Use with Group S6
SCP7 Use with Group S7 SP7 Use with Group S7
HEX BOLT (Two required per assembly) STACKING BOLTS - (Two required per assembly)
SHB1 Use with Group S1 SB1 Use with Group S1
SHB2 Use with Group S2 SB2 Use with Group S2
SHB3 Use with Group S3 SB3 Use with Group S3
SHB4 Use with Group S4 SB4 Use with Group S4
SHB5 Use with Group S5 SB5 Use with Group S5
SHB6 Use with Group S6 SB6 Use with Group S6
SHB7 Use with Group S7 SB7 Use with Group S7
STRUT NUT - For connection to Channel (Two required) CHANNEL
5
5
Pages 40 - 44 1 ⁄ 8" x 1 ⁄ 8" (41mm x 41mm)
13
Pages 55 - 59 1 ⁄ 8" x ⁄16" (41mm x 11mm)
5
ZSA1-8 Use with Groups S1-S7 5
Pages 48 - 51 1 ⁄ 8" x 1" (41mm x 25mm)
Pages 52 - 54 1 ⁄ 8" x ⁄ 8" (41mm x 22mm)
5
7

Complete Beta Product Line - Refer to Foster
Quick Disconnects Product Catalog for more
information on all available Beta Clamps
