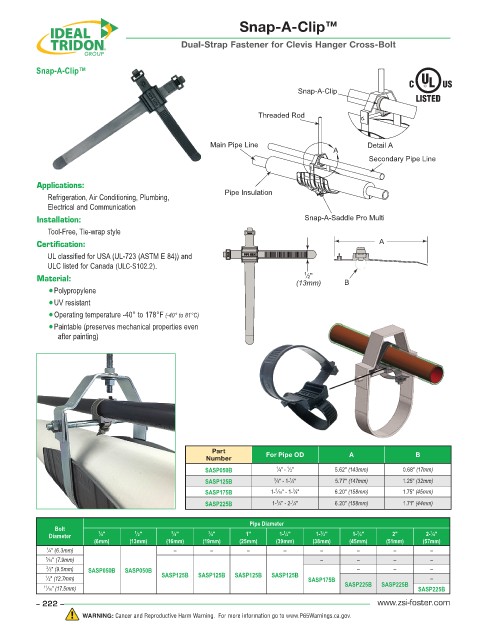

Page 222 - ZSi-Foster Product Catalog

Snap-A-Clip ™

Dual-Strap Fastener for Clevis Hanger Cross-Bolt

Snap-A-Clip™

Snap-A-Clip

Threaded Rod

Main Pipe Line Detail A
A
Secondary Pipe Line

Applications:
Refrigeration, Air Conditioning, Plumbing, Pipe Insulation
Electrical and Communication
Installation: Snap-A-Saddle Pro Multi
Tool-Free, Tie-wrap style
Certification: A
UL classified for USA (UL-723 (ASTM E 84)) and
ULC listed for Canada (ULC-S102.2).
Material: 1 ⁄2"
(13mm) B
• • Polypropylene
• • UV resistant
• • Operating temperature -40° to 178°F (-40° to 81°C)
• • Paintable (preserves mechanical properties even
after painting)

Part
Number For Pipe OD A B
1
SASP050B 1 ⁄4" - ⁄2" 5.62" (143mm) 0.68" (17mm)
1
SASP125B 5 ⁄8" - 1- ⁄4" 5.77" (147mm) 1.25" (32mm)
3
5
SASP175B 1- ⁄16" - 1- ⁄4" 6.20" (158mm) 1.75" (45mm)
1
3
SASP225B 1- ⁄4" - 2- ⁄4" 6.20" (158mm) 1.71" (44mm)
Pipe Diameter
Bolt 1 1 5 3 1 1 3 1
Diameter ⁄4" ⁄2" ⁄8" ⁄4" 1" 1- ⁄4" 1- ⁄2" 1- ⁄4" 2" 2- ⁄4"
(6mm) (13mm) (16mm) (19mm) (25mm) (39mm) (38mm) (45mm) (51mm) (57mm)
1 ⁄4" (6.3mm) – – – – – – – –
5 ⁄16" (7.9mm) – – – –
3 ⁄8" (9.5mm) SASP050B SASP050B – – –
1 ⁄2" (12.7mm) SASP125B SASP125B SASP125B SASP125B SASP175B –
11 ⁄16" (17.5mm) SASP225B SASP225B SASP225B

– 222 – www.zsi-foster.com
