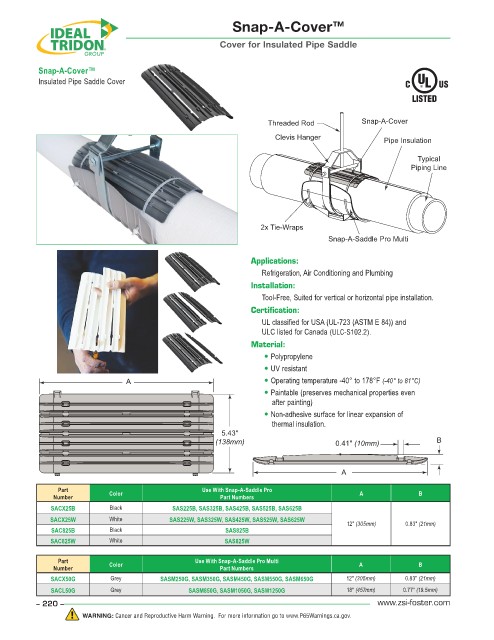

Snap-A-Cover ™

Cover for Insulated Pipe Saddle

Snap-A-Cover™
Insulated Pipe Saddle Cover

Threaded Rod Snap-A-Cover

Clevis Hanger Pipe Insulation

Typical
Piping Line

2x Tie-Wraps
Snap-A-Saddle Pro Multi

Applications:
Refrigeration, Air Conditioning and Plumbing
Installation:
Tool-Free, Suited for vertical or horizontal pipe installation.
Certification:
UL classified for USA (UL-723 (ASTM E 84)) and
ULC listed for Canada (ULC-S102.2).
Material:
• Polypropylene
• UV resistant
A • Operating temperature -40° to 178°F (-40° to 81°C)
• Paintable (preserves mechanical properties even
after painting)
• Non-adhesive surface for linear expansion of
thermal insulation.
5.43"
(138mm) 0.41" (10mm) B

A

Part Color Use With Snap-A-Saddle Pro A B
Number Part Numbers
SACX25B Black SAS225B, SAS325B, SAS425B, SAS525B, SAS625B
SACX25W White SAS225W, SAS325W, SAS425W, SAS525W, SAS625W
12" (305mm) 0.83" (21mm)
SAC825B Black SAS825B
SAC825W White SAS825W

Part Color Use With Snap-A-Saddle Pro Multi A B
Number Part Numbers
SACX50G Grey SASM250G, SASM350G, SASM450G, SASM550G, SASM650G 12" (305mm) 0.83" (21mm)
SACL50G Grey SASM850G, SASM1050G, SASM1250G 18" (457mm) 0.77" (19.5mm)
