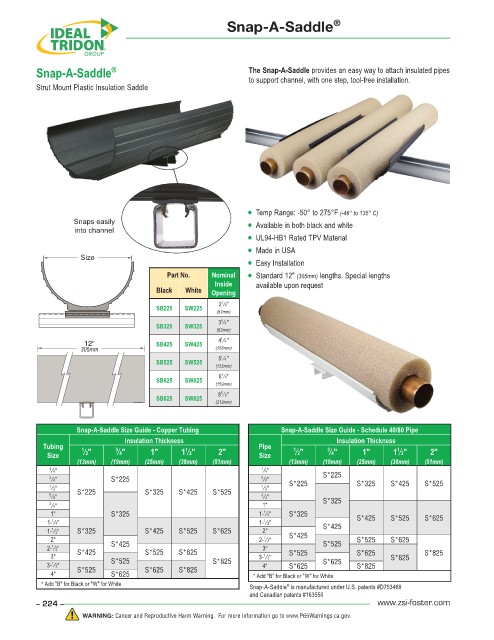

P. 224

Snap-A-Saddle              ®





          Snap-A-Saddle      ®                                 The Snap-A-Saddle provides an easy way to attach insulated pipes
                                                               to support channel, with one step, tool-free installation.
          Strut Mount Plastic Insulation Saddle

















                                                               • •   Temp Range: -50° to 275°F (-46° to 135° C)
                   Snaps easily                                • •   Available in both black and white
                    into channel
                                                               • •   UL94-HB1 Rated TPV Material
                                                               • •   Made in USA
                     Size
                                                               • •   Easy Installation
                                          Part No.    Nominal   • •   Standard 12" (305mm) lengths. Special lengths
                                                      Inside    available upon request
                                        Black  White  Opening
                                                        1
                                                       2 ⁄4"
                                        SB225  SW225
                                                       (57mm)
                                                        1
                                                       3 ⁄4 "
                                        SB325  SW325
                                                       (83mm)
                                                        1
                      12"               SB425  SW425   4 ⁄4 "
                     305mm                            (108mm)
                                                        1
                                                       5 ⁄4 "
                                        SB525  SW525
                                                      (133mm)
                                                        1
                                                       6 ⁄4"
                                        SB625  SW625
                                                      (159mm)
                                                        5
                                        SB825  SW825   8 ⁄8 "
                                                      (219mm)
                    Snap-A-Saddle Size Guide - Copper Tubing           Snap-A-Saddle Size Guide - Schedule 40/80 Pipe
                                Insulation Thickness                                Insulation Thickness
            Tubing   1        3                1                 Pipe     1       3                1
             Size     ⁄2"     ⁄4"     1"      1 ⁄2"    2"        Size     ⁄2"      ⁄4"     1"     1 ⁄2"     2"
                    (13mm)   (19mm)  (25mm)  (38mm)   (51mm)             (13mm)  (19mm)  (25mm)   (38mm)  (51mm)
             1 ⁄4"                                                1 ⁄4"
             3 ⁄8"           S*225                                3 ⁄8"          S*225
             1                                                    1      S*225           S*325    S*425   S*525
              ⁄2"   S*225            S*325   S*425    S*525       ⁄2"
             5 ⁄8"                                                3 ⁄4"
             3 ⁄4"                                                1"             S*325
                                                                  1
              1"             S*325                               1- ⁄4"  S*325           S*425    S*525   S*625
             1- ⁄4"                                              1- ⁄2"          S*425
                                                                  1
              1
             1- ⁄2"  S*325           S*425   S*525    S*625       2"     S*425
              1
                                                                  1
              2"             S*425                               2- ⁄2"          S*525   S*525    S*625
              1
             2- ⁄2"  S*425           S*525   S*625                3"     S*525           S*625            S*825
                                                                  1
              3"             S*525                    S*825      3- ⁄2"          S*625            S*825
              1
             3- ⁄2"  S*525           S*625   S*825                4"     S*625           S*825
              4"             S*625                              * Add "B" for Black or "W" for White
           * Add "B" for Black or "W" for White                         ®
                                                               Snap-A-Saddle  is manufactured under U.S. patents #D753468
                                                               and Canadian patents #163550
          – 224 –                                                                              www.zsi-foster.com
