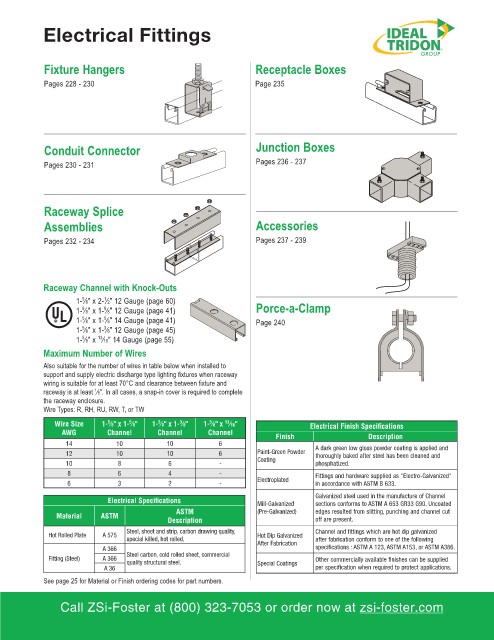

Page 227 - ZSi-Foster Product Catalog

Electrical Fittings

Fixture Hangers Receptacle Boxes
Pages 228 - 230 Page 235

Conduit Connector Junction Boxes

Pages 230 - 231 Pages 236 - 237

Raceway Splice
Assemblies Accessories

Pages 232 - 234 Pages 237 - 239

Raceway Channel with Knock-Outs
1
5
1- ⁄8" x 2- ⁄2" 12 Gauge (page 60)
5
5
1- ⁄8" x 1- ⁄8" 12 Gauge (page 41) Porce-a-Clamp
5
5
1- ⁄8" x 1- ⁄8" 14 Gauge (page 41) Page 240
3
5
1- ⁄8" x 1- ⁄8" 12 Gauge (page 45)
13
5
1- ⁄8" x ⁄16" 14 Gauge (page 55)
Maximum Number of Wires
Also suitable for the number of wires in table below when installed to
support and supply electric discharge type lighting fixtures when raceway
wiring is suitable for at least 70°C and clearance between fixture and
1
raceway is at least ⁄8". In all cases, a snap-in cover is required to complete
the raceway enclosure.
Wire Types: R, RH, RU, RW, T, or TW
Wire Size 1- ⁄8" x 1- ⁄8" 1- ⁄8" x 1- ⁄8" 1- ⁄8" x ⁄16" Electrical Finish Specifications
5
5
5
5
3
13
AWG Channel Channel Channel
Finish Description
14 10 10 6 A dark green low gloss powder coating is applied and
12 10 10 6 Paint-Green Powder thoroughly baked after steel has been cleaned and
10 8 6 - Coating phosphatized.
8 6 4 - Fittings and hardware supplied as "Electro-Galvanized"
6 3 2 - Electroplated in accordance with ASTM B 633.
Galvanized steel used in the manufacture of Channel
Electrical Specifications Mill-Galvanized sections conforms to ASTM A 653 GR33 G90. Uncoated
ASTM (Pre-Galvanized) edges resulted from slitting, punching and channel cut
Material ASTM
Description off are present.
Steel, sheet and strip, carbon drawing quality, Channel and fittings which are hot dip galvanized
Hot Rolled Plate A 575 Hot Dip Galvanized
special killed, hot rolled. after fabrication conform to one of the following
A 366 After Fabrication specifications.: ASTM A 123, ASTM A153, or ASTM A386.
Fitting (Steel) A 366 Steel carbon, cold rolled sheet, commercial Special Coatings Other commercially available finishes can be supplied
quality structural steel.
A 36 per specification when required to protect applications.
See page 25 for Material or Finish ordering codes for part numbers.
