P. 218

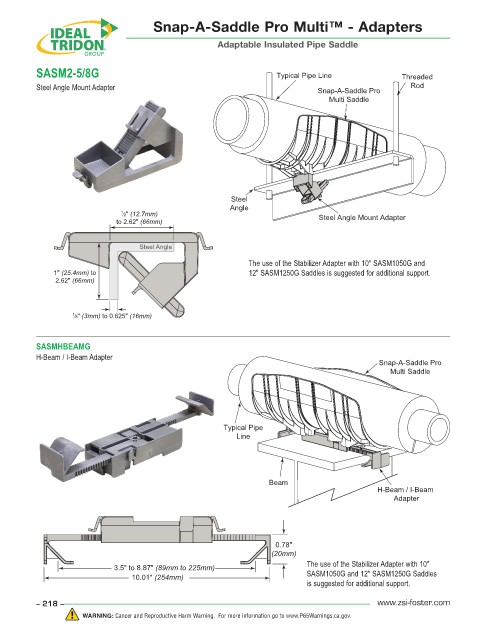

Snap-A-Saddle Pro Multi™ - Adapters
Adaptable Insulated Pipe Saddle
SASM2-5/8G Typical Pipe Line Threaded
Steel Angle Mount Adapter Snap-A-Saddle Pro Rod
Multi Saddle
Steel
Angle
1 ⁄2" (12.7mm)
to 2.62" (66mm) Steel Angle Mount Adapter
Steel Angle
The use of the Stabilizer Adapter with 10" SASM1050G and
1" (25.4mm) to 12" SASM1250G Saddles is suggested for additional support.
2.62" (66mm)
1 ⁄8" (3mm) to 0.625" (16mm)
SASMHBEAMG
H-Beam / I-Beam Adapter
Snap-A-Saddle Pro
Multi Saddle
Typical Pipe
Line
Beam
H-Beam / I-Beam
Adapter
0.78"
(20mm)
The use of the Stabilizer Adapter with 10"
3.5" to 8.87" (89mm to 225mm)
10.01" (254mm) SASM1050G and 12" SASM1250G Saddles
is suggested for additional support.
