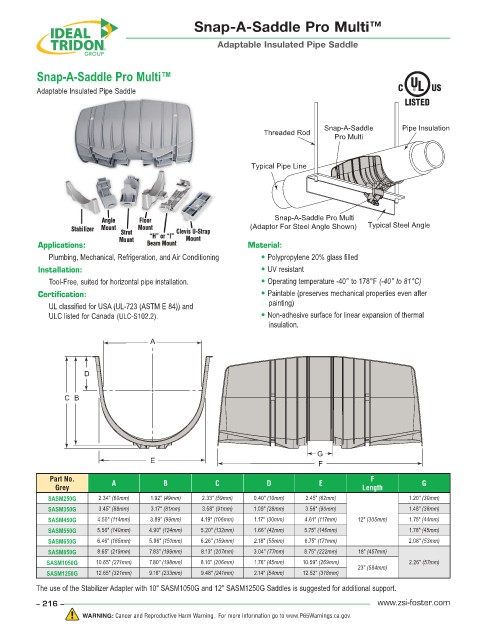

Page 216 - ZSi-Foster Product Catalog

Snap-A-Saddle Pro Multi ™

Adaptable Insulated Pipe Saddle

Snap-A-Saddle Pro Multi™
Adaptable Insulated Pipe Saddle

Snap-A-Saddle Pipe Insulation
Threaded Rod
Pro Multi

Typical Pipe Line

Snap-A-Saddle Pro Multi
(Adaptor For Steel Angle Shown) Typical Steel Angle

Applications: Material:
Plumbing, Mechanical, Refrigeration, and Air Conditioning • Polypropylene 20% glass filled
Installation: • UV resistant
Tool-Free, suited for horizontal pipe installation. • Operating temperature -40° to 178°F (-40° to 81°C)
Certification: • Paintable (preserves mechanical properties even after
UL classified for USA (UL-723 (ASTM E 84)) and painting)
ULC listed for Canada (ULC-S102.2). • Non-adhesive surface for linear expansion of thermal
insulation.
A

D

C B

G
E F
Part No. A B C D E F G
Grey Length
SASM250G 2.34" (60mm) 1.92" (49mm) 2.33" (59mm) 0.40" (10mm) 2.45" (62mm) 1.20" (30mm)
SASM350G 3.45" (88mm) 3.17" (81mm) 3.58" (91mm) 1.09" (28mm) 3.56" (90mm) 1.48" (38mm)
SASM450G 4.50" (114mm) 3.89" (99mm) 4.19" (106mm) 1.17" (30mm) 4.61" (117mm) 12" (305mm) 1.75" (44mm)
SASM550G 5.56" (140mm) 4.90" (124mm) 5.20" (132mm) 1.66" (42mm) 5.75" (146mm) 1.78" (45mm)
SASM650G 6.46" (165mm) 5.96" (151mm) 6.26" (159mm) 2.18" (55mm) 6.75" (171mm) 2.08" (53mm)
SASM850G 8.65" (219mm) 7.83" (199mm) 8.13" (207mm) 3.04" (77mm) 8.75" (222mm) 18" (457mm)
SASM1050G 10.65" (271mm) 7.80" (198mm) 8.10" (206mm) 1.76" (45mm) 10.59" (269mm) 2.26" (57mm)
23" (584mm)
SASM1250G 12.65" (321mm) 9.18" (233mm) 9.48" (241mm) 2.14" (54mm) 12.52" (318mm)
The use of the Stabilizer Adapter with 10" SASM1050G and 12" SASM1250G Saddles is suggested for additional support.
