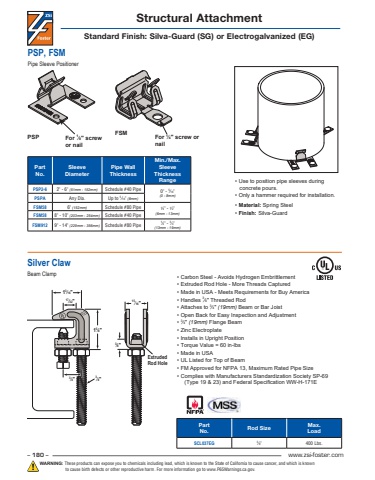

– 180 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Structural AttachmentStandard Finish: Silva-Guard (SG) or Electrogalvanized (EG)PSP, FSMPipe Sleeve PositionerPSPFSMFor 1⁄8\or nailFor 1⁄4\nailPart No.Sleeve DiameterPipe Wall ThicknessMin./Max. Sleeve Thickness RangePSP2-6 2\Schedule #40 Pipe 0\ - 5⁄16\(0 - 8mm) PSPA Any Dia. Up to 5⁄16\FSM58 6\Schedule #80 Pipe 1⁄4\⁄2\(6mm - 13mm) FSM58 8\Schedule #40 PipeFSM912 9\Schedule #80 Pipe 1⁄2\⁄4\(13mm - 19mm)• Use to position pipe sleeves during concrete pours. • Only a hammer required for installation.• Material: Spring Steel• Finish: Silva-GuardSilver ClawBeam Clamp3⁄8\15⁄8\13⁄16\3⁄8\15⁄16\ 17⁄32\Extruded Rod Hole3⁄4\Part No. Rod Size Max. LoadSCL037EG 3⁄8\400 Lbs.• Carbon Steel - Avoids Hydrogen Embrittlement• Extruded Rod Hole - More Threads Captured• Made in USA - Meets Requirements for Buy America • Handles 3⁄8\• Attaches to 3⁄4\• Open Back for Easy Inspection and Adjustment• 3⁄4\• Zinc Electroplate• Installs in Upright Position• Torque Value = 60 in-lbs• Made in USA• UL Listed for Top of Beam• FM Approved for NFPA 13, Maximum Rated Pipe Size• Complies with Manufacturers Standardization Society SP-69 (Type 19 & 23) and Federal Specification WW-H-171E
