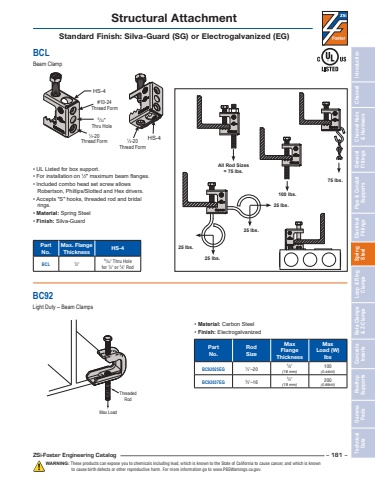

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 181 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Structural AttachmentStandard Finish: Silva-Guard (SG) or Electrogalvanized (EG)BCLBeam ClampHS-4HS-4Part No.Max. Flange Thickness HS-4BCL 1⁄2\13⁄32\ Thru Hole for 1⁄4\⁄8\75 lbs.All Rod Sizes = 75 lbs.100 lbs.• UL Listed for box support. • For installation on 1⁄2\• Included combo head set screw allows Robertson, Phillips/Slotted and Hex drivers. • Accepts \rings. • Material: Spring Steel• Finish: Silva-Guard25 lbs.25 lbs.25 lbs.25 lbs.#10-24 Thread Form9⁄ 32\Thru Hole1⁄4-20 Thread Form 1⁄4-20 Thread FormBC92Light Duty – Beam ClampsMax LoadThreadedRodPart No.Rod Size Max Flange ThicknessMax Load (W)lbsBC92025EG 1⁄4\5⁄8\(16 mm)100 (0.44kN)BC92037EG 3⁄8\3⁄4\(19 mm)200 (0.89kN)• Material: Carbon Steel• Finish: Electrogalvanized
