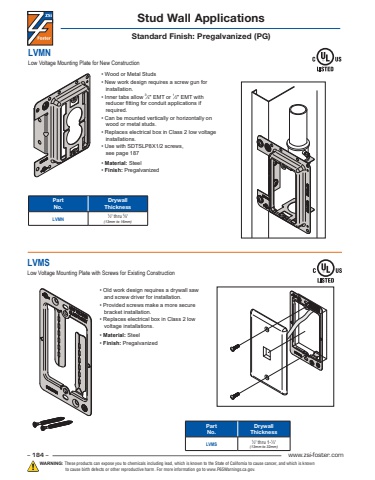

– 184 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.LVMNLow Voltage Mounting Plate for New ConstructionLVMSLow Voltage Mounting Plate with Screws for Existing ConstructionPart No.Drywall ThicknessLVMN 1⁄2\⁄8\(13mm to 16mm)Part No.Drywall ThicknessLVMS 1⁄2\⁄4\(13mm to 32mm)• Wood or Metal Studs • New work design requires a screw gun for installation. • Inner tabs allow 3⁄4\⁄2\reducer fitting for conduit applications if required. • Can be mounted vertically or horizontally on wood or metal studs. • Replaces electrical box in Class 2 low voltage installations. • Use with SDTSLP8X1/2 screws, see page 187 • Material: Steel• Finish: Pregalvanized• Old work design requires a drywall saw and screw driver for installation. • Provided screws make a more secure bracket installation. • Replaces electrical box in Class 2 low voltage installations. • Material: Steel• Finish: PregalvanizedStud Wall ApplicationsStandard Finish: Pregalvanized (PG)
